WAFER BALL VALVES
/
WAFER PN16
/
722000

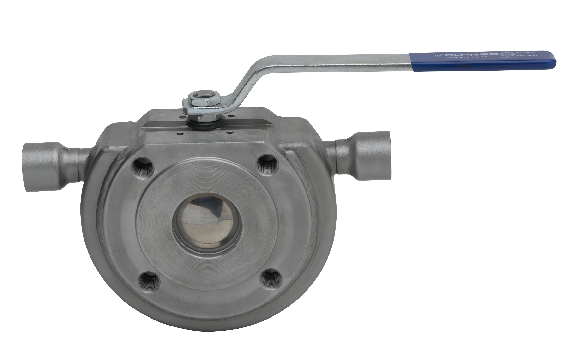

WAFER PN16

722000

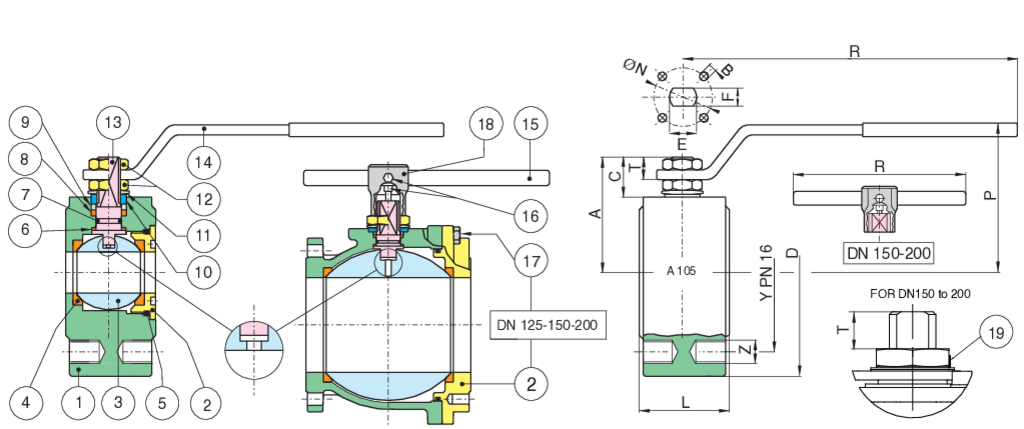

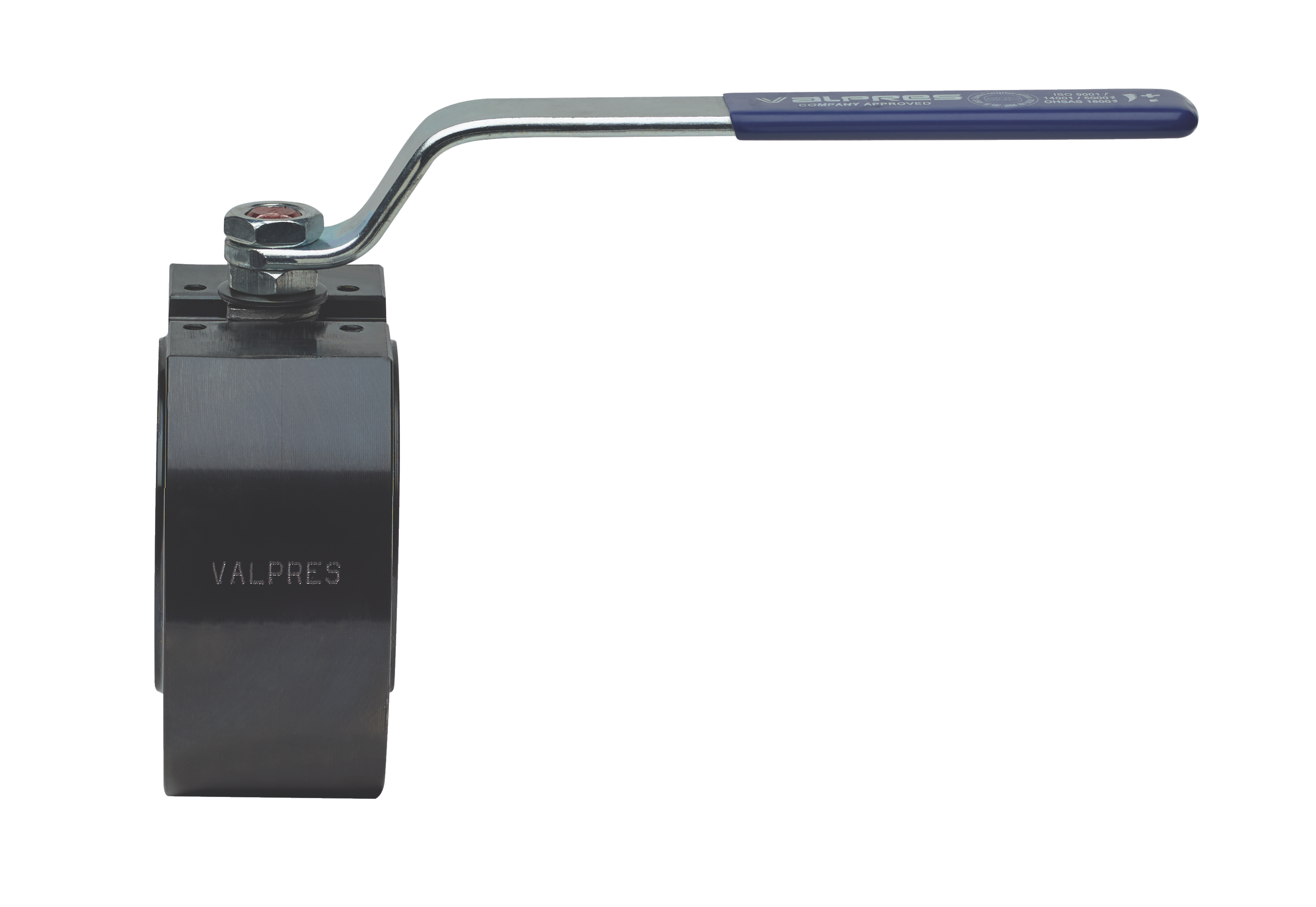

Full bore flanged ball valve PN16, in blued carbon steel ASTM A105/A352-LCB.

Technical specifications

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

Position Part name Material N.° pieces
1 BODY ASTM A105/A352-LCB/LF2 1
2 END CONNECTION ASTM A105/A352-LCB/LF2 1
3 BALL A351-CF8/A479-TP304 1
4 BALL SEAT PTFE 2
5 O-RING FKM 1
6 THRUST WASHER PTFE 1
7 RING FKM 1
8 STEM SEAT PTFE 1
9 PACKING GLAND CARBON STEEL 1
10 END STOP INOX AISI 430 (DN15-DN50) CARBON STEEL (DN65-DN150) 2-1
11 SPRING WASHER CARBON STEEL 2
12 NUT CARBON STEEL 2
13 STEM A479-TP304/17-4-PH 1
14 HANDLE CARBON STEEL 1
15 HANDLE DN 150-200 CARBON STEEL 1
16 SCREW CARBON STEEL 2
17 SCREW CARBON STEEL 8-12
18 BODY HANDLE DN 150-200 EN-GJL 250 1
19 UNSCREWING GROWER A182-F316 1
SIZE DN CODE D Y Z L R P A C T E F ØN B Kv PN Kg
1/2" 15 72200004 90 65 4xM12 35 131 65 47 15,5 9 10 7 32 4xM5 19,2 16 1,40
3/4" 20 72200005 100 75 4xM12 40 131 69 51,5 15,5 9 10 7 32 4XM5 35 16 1,90
1" 25 72200006 110 85 4xM12 46 174 80 61 19,5 11 12 8 42 4XM5 64,5 16 2,70
1"1/4 32 72200007 130 100 4XM16 54 174 84 65,5 16,5 11 12 8 42 4XM5 103,8 16 4,20
1"1/2 40 72200008 140 110 4XM16 63,5 250 102 78 24,5 13 16 10 50 4XM6 174 16 6,30
2" 50 72200010 150 125 4XM16 82 250 111 87 25 13 16 10 50 4XM6 301,3 16 8,70
2"1/2 65 72200012 175 145 4XM16 103 321 128 104,5 28 18 20 14 70 4XM8 545,7 16 15,50
3" 80 72200014 190 160 8XM16 122 321 138 115 28,5 18 20 14 70 4XM8 872,5 16 20,50
4" 100 72200018 220 180 8XM16 152 381 156 137 34,5 22 24 18 102 4XM10 1363,3 16 34,20
5" 125 72200019 250 210 8XM16 196 381 178 159 34 22 24 18 102 4XM10 2360,3 16 40,50
6" 150 72200020 300 240 8XM20 232 700 266 201,5 51,5 30 42 30 125 4XM12 3671,1 16 66,20
8"* 200 72200021 340 295 12XØ22 400 700 332 288 68 41 42 30 125 4XM12 6816,6 16 104,00

* Art. 760001

Suitable for methane gas.

Certifications
F.E. TESTED ISO15848-1
TUV SIL 3
ATEX FIRE-SAFE (On request)
Available media and videos
Catalogue
Price List
Spare Parts
HANDLES
Code Material Size
RI2018 A 37 15
RI2018 A 37 20
RI2019 A 37 25
RI2019 A 37 32
RI2020 A 37 40
RI2020 A 37 50
RI2016 A 37 65
RI2016 A 37 80
RI2017 A 37 100
RI2017 A 37 125
RI2021 A 37 150
RI2021 A 37 200
SEATS
Code Material Size
RI0438 PTFE 15
RI0439 PTFE 20
RI0440 PTFE 25
RI0441 PTFE 32
RI2129 PTFE 40
RI2125 PTFE 50
RI2121 PTFE 65
RI2139 PTFE 80
RI2144 PTFE 100
RI2041 PTFE 125
RI2043 PTFE 200
BALL
Code Material Size
00304000046 AISI 304 15
00305000075 AISI 304 20
00306000038 AISI 304 25
00307000059 AISI 304 32
00308000029 AISI 304 40
00310000028 AISI 304 50
00312000013 AISI 304 65
00314000016 AISI 304 80
00318007004 AISI 304 100
00319007006 AISI 304 125
00320007001 AISI 304 150
STEMS
Code Material Size
00405000061 AISI 304 15
00405000061 AISI 304 20
00406000046 AISI 304 25
00406000046 AISI 304 32
00408000051 AISI 304 40
00408000051 AISI 304 50
00412000054 AISI 304 65
00412000054 AISI 304 80
00418000037 AISI 304 100
00418000037 AISI 304 125
00420000016 AISI 304 150
