SPLIT-BODY BALL VALVES
/
SPLIT-BODY ANSI 150
/
760005
SPLIT-BODY ANSI 150

760005

STAINLESS STEEL

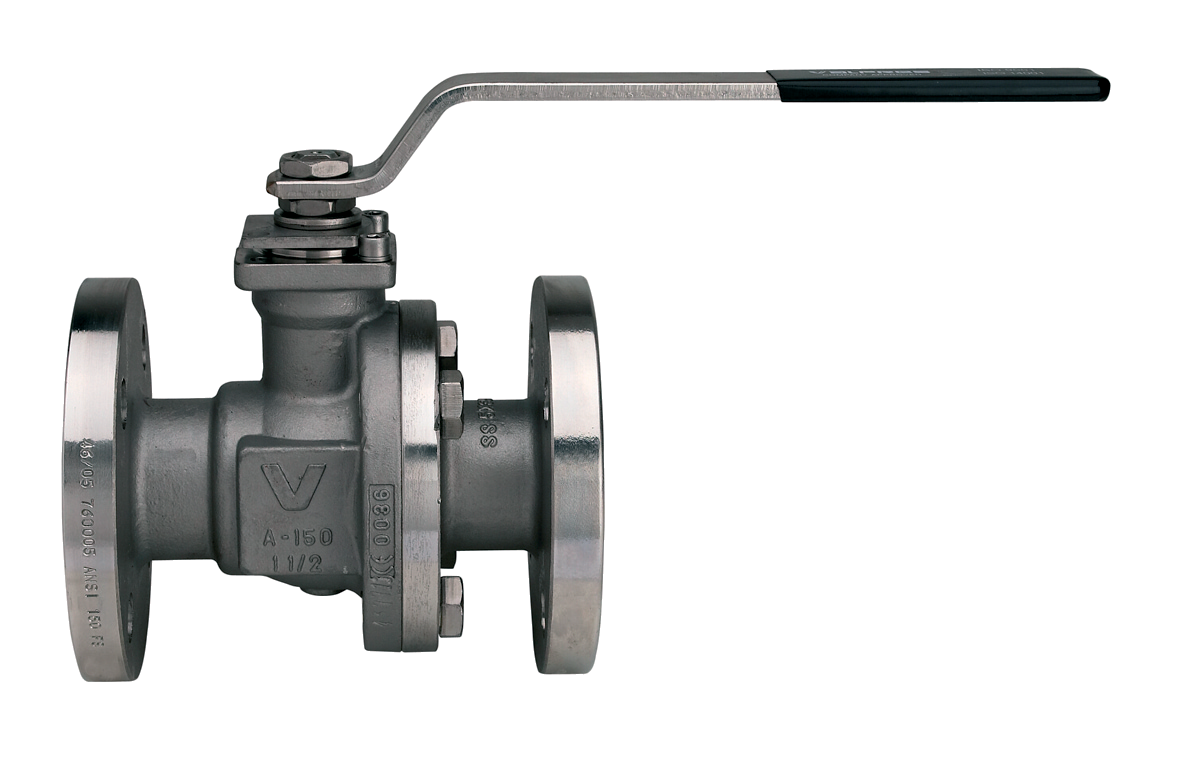

Flanged ANSI 150 stainless steel AISI A351-CF8M ball valve, full bore, ANSI B16.10 face to face dimension, Fire Safe, Antistatic Device.

Technical specifications

Temperature range: -20°C +160°C.
Vacuum: 10-3 torr.

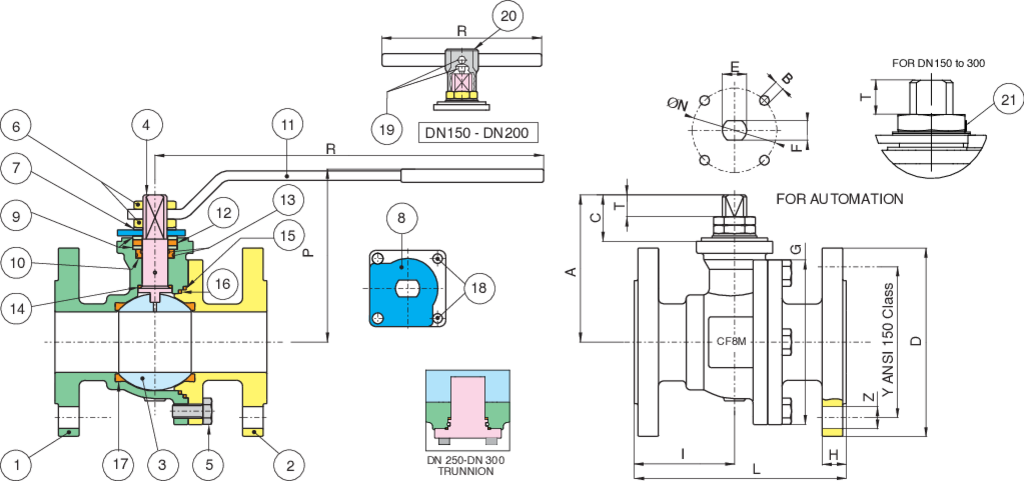

Position Part name Material N.° pieces
1 BODY A351-CF8M 1
2 END CONNECTION A351-CF8M 1
3 BALL A479-TP316/A351-CF8M 1
4 STEM A479-TP316/17-4-PH 1
5 SCREW STAINLESS STEEL 4-8-12
6 NUT STAINLESS STEEL 1-2
7 SPRING WASHER STAINLESS STEEL 2
8 90° STOP A182-F316 1
9 PACKING GLAND A182-F316 2
10 STEM SEAT PTFE 1
11 HANDLE A182-F316 1
12 STEM SEAL GRAPHOIL 1
13 O-RING FKM 2
14 THRUST WASHER PTFE 1
15 BODY SEAT GRAPHOIL 1
16 BODY SEAT PTFE 1
17 BALL SEAT PTFE 2
18 SCREW STAINLESS STEEL 2
19 SCREW STAINLESS STEEL 2
20 BODY HANDLE DN150-200 EN-GJL 250 1
21 Unscrewing grower A182-F316 1
SIZE DN CODE D Y Z H I L G P R A C T E F ØN B Kv PN Kg
1/2" 15 76000504 90 60,5 4xØ16 11,5 46,5 108 71 88 131 52 19 8 M10 7 42-F04 M5 19,2 20 1,91
3/4" 20 76000505 100 70 4xØ16 13 53 117 73,5 93 131 56 19 8 M10 7 42-F04 M5 35 20 2,43
1" 25 76000506 110 79,5 4xØ16 14,5 59,5 127 90,5 89 174 72,5 27,5 13 M12 8 50-F05 M6 64,5 20 3,70
1"1/2 40 76000508 125 98,5 4xØ16 17,5 77 165 114 133 250 106 30 10 M16 10 50-F05 M6 174 20 7,10
2" 50 76000510 150 120,5 4xØ19 19,5 86 178 136,5 144 321 122 38,5 18 M20 14 70-F07 M8 301,3 20 10,80
3" 80 76000514 190 152,5 4xØ19 24 79,5 203 178,6 173 381 151 43 18 M24 18 102-F10 M10 872,5 20 21,60
4" 100 76000518 230 190,5 8xØ19 24 110 229 208,6 187 381 165 43 18 M24 18 102-F10 M10 1363,3 20 30,40
6" 150 76000520 280 241,5 8xØ22 25,5 181 394 311 305 700 245 68 41 M42 30 125-F12 M12 3671,1 20 78,00
8" 200 76000521 345 298,5 8xØ22 29 212 457 402 348 700 288 68 41 M42 30 125-F12 M12 6816,6 20 124,60
10"* 250 76000577 405 362 12xØ26 32,2 301,8 533 500 - - 353 81 47 M52 38 140-F14 M16 11170,7 20 195,00
12"* 300 76000578 485 431,8 12xØ26 33,8 353,8 610 560 - - 384 81 47 M52 38 140-F14 M16 16805,6 20 254,00

*TRUNNION supplied without handle.

Certifications
TUV SIL 3
FIRE-SAFE Acc. EN ISO 10497/API 607
F.E. TESTED ISO15848-1
Available media and videos
Catalogue
Price List
V-PACK
Spare Parts
HANDLES
Code Material Size
RI2180 AISI 316 15
RI2180 AISI 316 20
RI2181 AISI 316 25
RI2181 AISI 316 32
RI2182 AISI 316 40
RI2183 AISI 316 50
RI2183 AISI 316 65
RI2184 AISI 316 80
RI2184 AISI 316 100
RI2184 AISI 316 125
RI2021 A 37 150
RI2021 A 37 200
SEATS
Code Material Size
RI2322 PTFE 15
RI2323 PTFE 20
RI2324 PTFE 25
RI2325 PTFE 32
RI2326 PTFE 40
RI2327 PTFE 50
RI2646 PTFE 50 SPLIT WAFER
RI2328 PTFE 65
RI2329 PTFE 80
RI2330 PTFE 100
DIN
RI2346 PTFE 100
 ANSI
RI2331 PTFE 125
RI2332 PTFE 150
RI2478 PTFE 200
RI2659 PTFE 250
RI2849 PTFE 300
BALL
Code Material Size
00304000037 AISI 316 15
00305000031 AISI 316 20
00306000031 AISI 316 25
00307000031 AISI 316 32
00308000026 AISI 316 40
00310000080 AISI 316 50
00312000009 AISI 316 65
00314000013 AISI 316 80
00318007006 AISI 316 100DIN
00318007001 AISI 316 100ANSI
00319007005 AISI 316 125
00320007002 AISI 316 150
00321000027 AISI 316 200
STEMS ANTISTATIC DEVICE
Code Material Size
00404000033 AISI 316 15
00404000033 AISI 316 20
00406000020 AISI 316 25
00406000020 AISI 316 32
00412000014 AISI 316 65
STEMS
Code Material Size
00408000022 AISI 316 40
00410000023 AISI 316 50
00414000006 AISI 304 80
00414000006 AISI 304 100
00414000006 AISI 304 125
00420000007* AISI 316 150
00420000007* AISI 316 200
00477000005 17-4-PH 250
00477000005 17-4-PH 300
