INOX-VAL 2 PIECE BALL VALVES
/
705000
INOX-VAL 2 PIECE BALL VALVES

705000

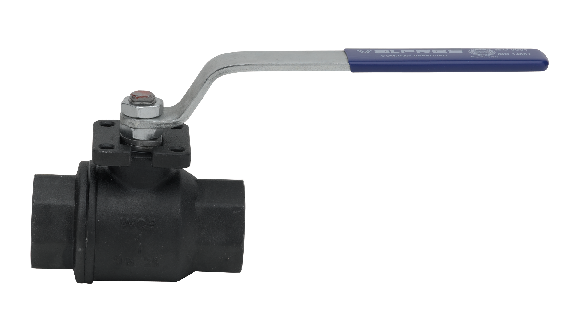

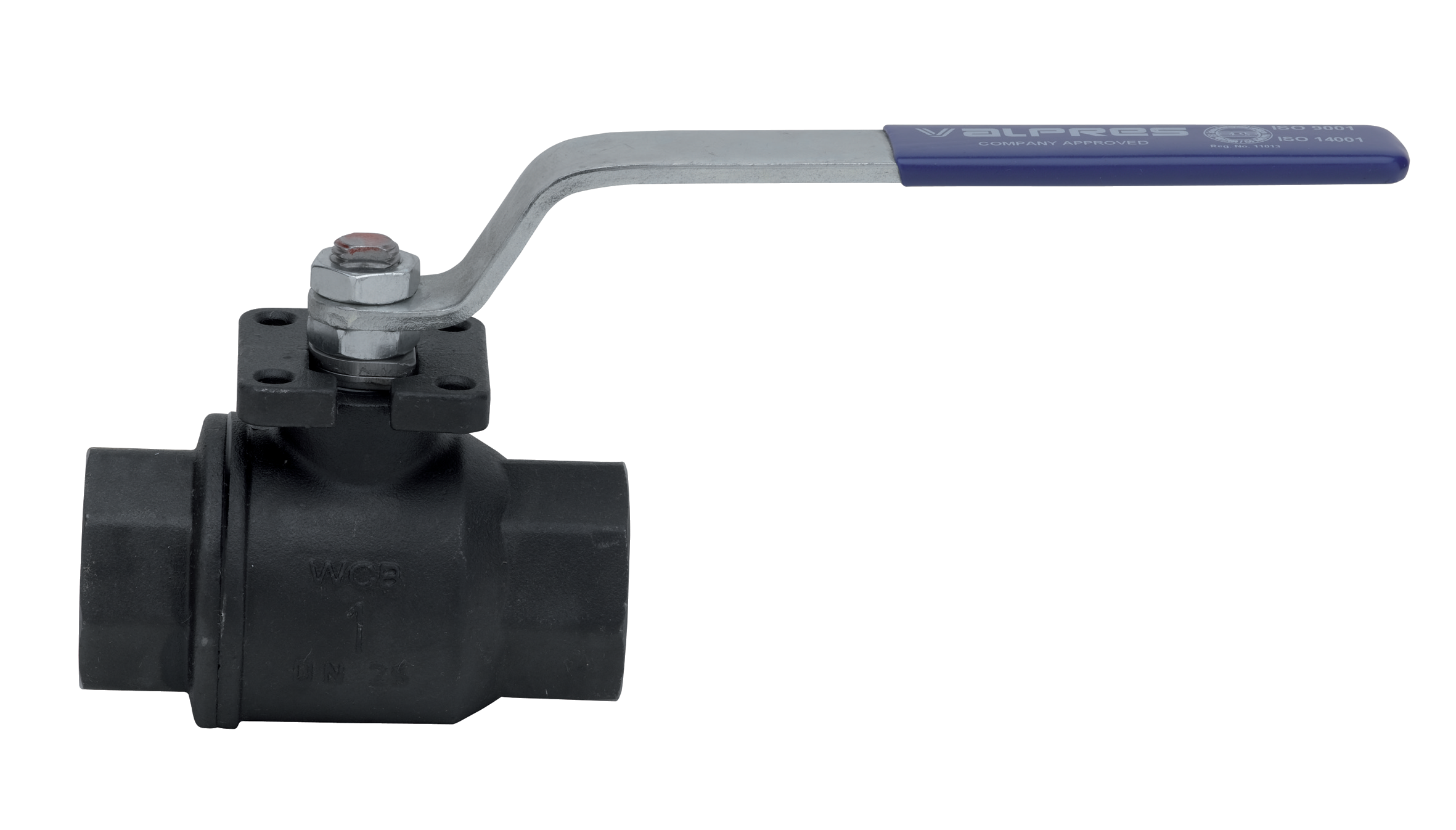

Full bore blued carbon steel A352-LCB ball valve with AISI 304 ball and stem, F/F threading, ISO 5211.

Technical specifications

Temperature range: -20°C +160°C.
Vacuum: 10-2 torr.

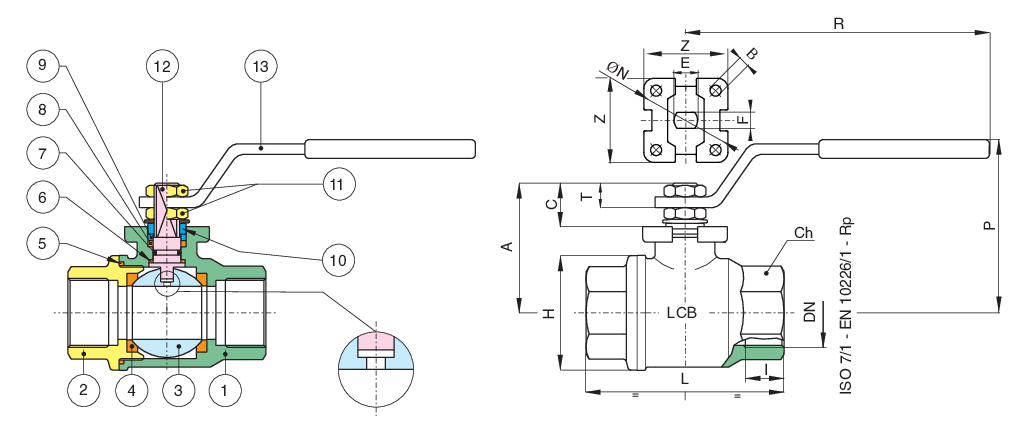

Position Part name Material N.° pieces
1 BODY A352-LCB 1
2 END CONNECTION A352-LCB 1
3 BALL A479-TP304/A351-CF8 1
4 BALL SEAT PTFE 2
5 SEAT PTFE 1
6 THRUST WASHER PTFE 1
7 O-RING FKM 1
8 STEM SEAT PTFE 1
9 PACKING GLAND CARBON STEEL 1
10 END STOP INOX AISI 430 2
11 NUT CARBON STEEL 2
12 STEM A479-TP304/17-4-PH 1
13 HANDLE CARBON STEEL 1
SIZE DN CODE BOX I L H Ch R P A C T E F ØN B Z Kv PN Kg
1/4" 8 70500002 10 11 55 30 ES.22 110 50 35 13,5 8 8 5 36 5,5 36 5,5 64 0,27
3/8" 10 70500003 10 11,4 55 30 ES.22 110 50 35 13,5 8 8 5 36 5,5 36 8,5 64 0,26
1/2" 15 70500004 10 15 66 36 ES.27 110 53 38 13,5 8 8 5 36 5,5 36 19,2 64 0,35
3/4" 20 70500005 5 16,3 79 45 ES.32 131 68 51 15 10 10 7 42 5,5 42 35 64 0,65
1" 25 70500006 6 19,1 93 54 OT.41 174 79 60 19,5 12,5 12 8 42 5,5 42 64,5 64 1,02
1"1/4 32 70500007 2 21,4 98 64 OT.50 174 83 64 19,5 12,5 12 8 42 5,5 42 103,8 64 1,40
1"1/2 40 70500008 2 21,4 110 80 OT.55 250 100 79 24 16,5 16 10 50 6,5 50 174 64 2,35
2" 50 70500010 2 25,7 130 95 OT.70 250 107 86 24 16,5 16 10 50 6,5 50 301,3 64 3,54

Suitable for Methane Gas.

Certifications
SIL 3
TUV
ATEX FIRE-SAFE (On request)
Available media and videos
Catalogue
Price List
Spare Parts
HANDLES
Code Material Size
RI2143 A 37 1/4"
RI2143 A 37 3/8"
RI2143 A 37 1/2"
RI2018 A 37 3/4"
RI2019 A 37 1"
RI2019 A 37 1"1/4
RI2020 A 37 1"1/2
RI2020 A 37 2"
SEATS
Code Material Size
RI2133 PTFE 1/4"
RI2133 PTFE 3/8"
RI2133 PTFE 1/2"
RI2134 PTFE 3/4"
RI2135 PTFE 1"
RI2136 PTFE 1"1/4
RI2137 PTFE 1"1/2
RI2138 PTFE 2"
BALL
Code Material Size
00304000080 AISI 304 1/8"
00304000080 AISI 304 1/4"
00304000080 AISI 304 3/8"
00305000035 AISI 316, AISI 304 3/4"
00306000084 AISI 304 1"
00307000054 AISI 304 1"1/4
00308000029 AISI 304 1"1/2
00310000028 AISI 304 2"
STEMS
Code Material Size
00401000003 AISI 316 1/4"
00401000003 AISI 316 3/8"
00401000003 AISI 316 1/2"
00405000061 AISI 304 3/4"
00406000046 AISI 304 1"
00406000046 AISI 304 1"1/4
00408000051 AISI 304 1"1/2
00408000051 AISI 304 2"
