WAFER-SPLIT BALL VALVES
/
WAFER-SPLIT PN16
/
763V00
WAFER-SPLIT PN16

763V00

STAINLESS STEEL

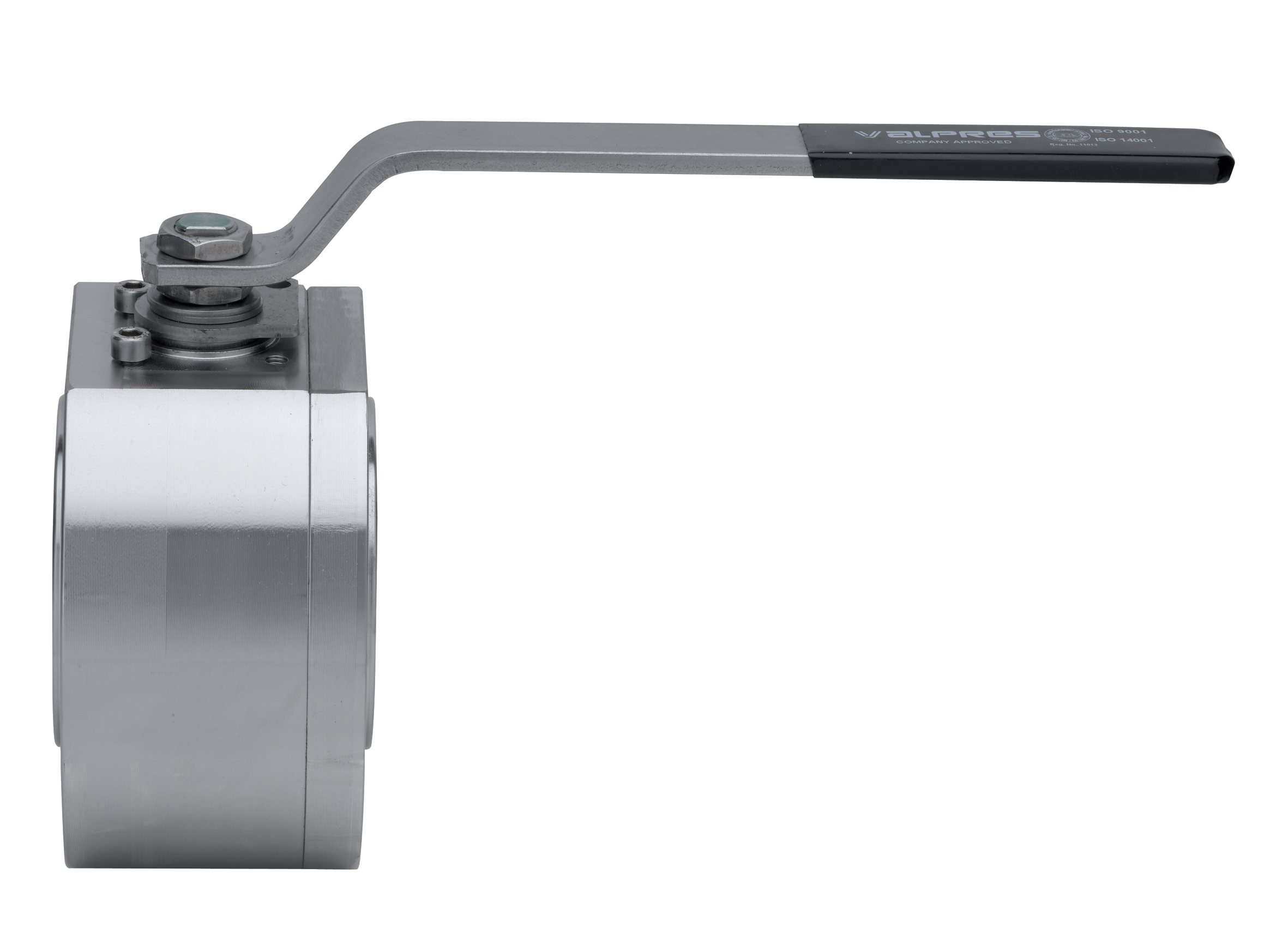

Full bore Wafer-Split flanged ball valve PN16 with Antistatic Device and Fire Safe certificate, metric thread stainless steel A182-F316/316L.

A182 - F316 with V-Pack for solvents.

Technical specifications

Stainless steel Temperature range: -20° +160°

Vacuum: 10-3 torr.

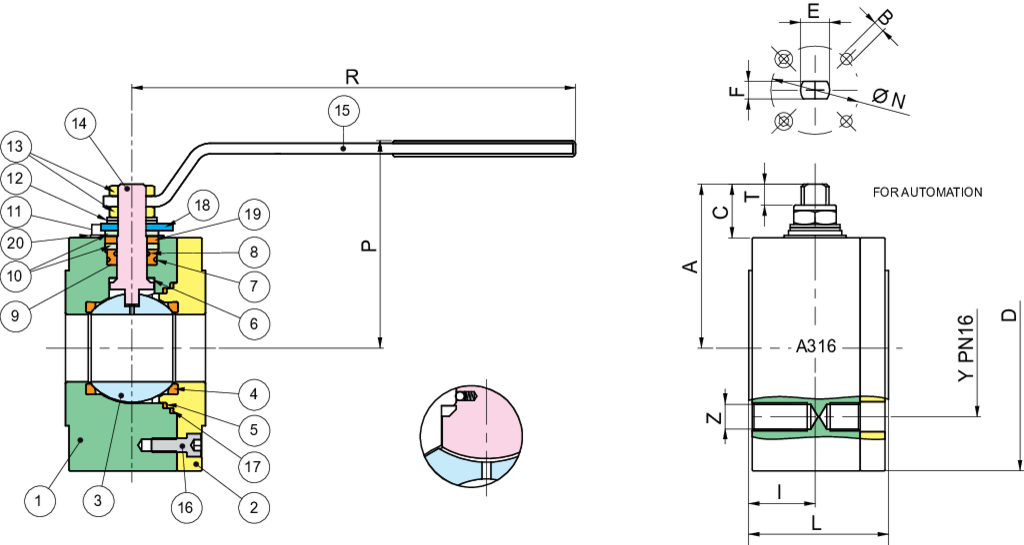

Position Part name Material N.° pieces
1 BODY A479-TP316 1
2 END CONNECTION A479-TP316 1
3 BALL A351-CF8M/A479-TP316 1
4 BALL SEAT PTFE 2
5 BODY SEAT PTFE 1
6 THRUST WASHER PTFE 1
7 O-RING FKM 1
8 O-RING FKM 1
9 STEM SEAT PTFE 1
10 PACKING GLAND A182-F316 2
11 SCREW STAINLESS STEEL 2
12 SPRING WASHER A182-F304 2
13 NUT STAINLESS STEEL 2
14 STEM A479-TP316/17-4-PH 1
15 HANDLE A182-F316 1
16 SCREW STAINLESS STEEL 3-4
17 BODY SEAT GRAPHOIL 1
18 90° STOP A182-F316 1
19 STEM SEAL GRAPHOIL 1
20 WASHER STAINLESS STEEL 2
SIZE DN CODE D Y Z I L R P A C T E F ØN B Kv PN Kg
1/2" 15 763V0004 90 65 4XM12 22 53 131 69 52,5 19,5 8 M10 7 42-F04 M5 19,2 40 2,30
3/4" 20 763V0005 95 75 4XM12 22 53 131 74 56 18 7,5 M10 7 42-F04 M5 35 40 2,45
1" 25 763V0006 110 85 4XM12 24 57 174 92 72,5 25,5 10 M12 8 42-F04 M5 64,5 40 3,80
1"1/4 32 763V0007 130 100 4XM16 30 65 174 97 76 23 8,5 M12 8 42-F04 M5 103,8 40 5,60
1"1/2 40 763V0008 140 110 4XM16 37,5 79 250 118 93 31 11 M16 10 50-F05 M6 174 40 8,50
2" 50 763V0010 150 125 4XM16 42 84 250 126 102 31 11,5 M16 14 50-F05 M6 301,3 40 10,00
2"1/2 65 763V0012 180 145 4XM16 50,5 103 321 143 121 37,5 17 M20 14 70-F07 M8 545,7 16 17,50
3" 80 763V0014 190 160 8XM16 61 122 381 153 132 42 18 M24 18 70-F07 M8 872,5 16 27,50
4" 100 763V0018 220 180 8XM16 77,5 155 381 166 145,5 43 18 M24 18 102-F10 M10 1363,3 16 36,80

Available in the ANSI 150 up to DN80.

Certifications
SIL 3
TUV
FIRE-SAFE Acc. EN ISO 10497/API 607
F.E. TESTED ISO15848-1
Available media and videos
Catalogue
Price List
Spare Parts
Code Material Size
RI6612 TFM + V-PACK 15
RI6613 TFM + V-PACK 20
RI6436 TFM + V-PACK 25
RI6614 TFM + V-PACK 32
RI6615 TFM + V-PACK 40
RI6635 TFM + V-PACK 50
RI6617 TFM + V-PACK 65
RI6618 TFM + V-PACK 80
RI6463 TFM + V-PACK 100
Back to the catalogue

Related products / Accesories

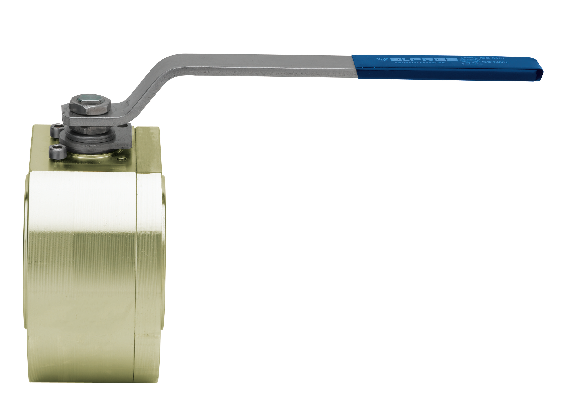

764000
