WAFER BALL VALVES
/
WAFER PN16
/
720002
WAFER PN16

720002

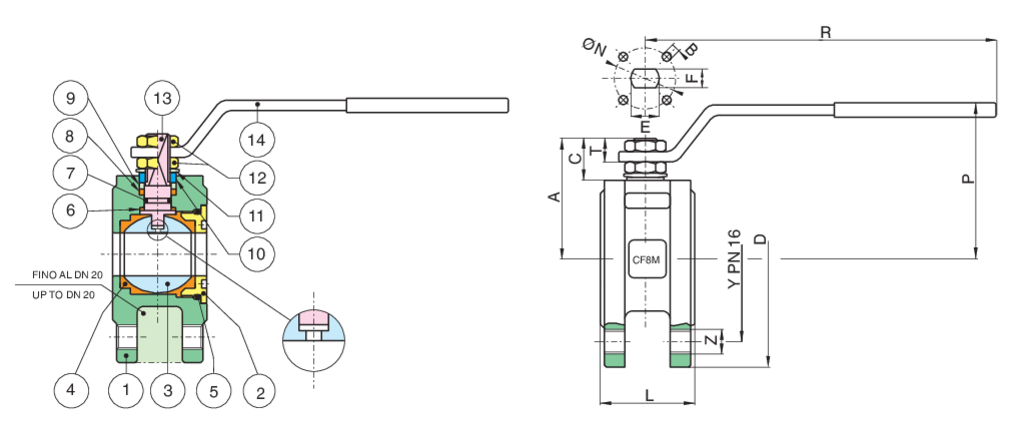

Full bore flanged ball valve PN16, metric thread stainless steel A351-CF8 and A351-CF8M.

A182-F316/A351-CF8M T.I.A. integral seats
Technical specifications
Position Part name Material N.° pieces
1 BODY A351-CF8M/A182-F316 1
2 END CONNECTION A351-CF8M/A182-F316 1
3 BALL A351-CF8M/A479-TP316 1
4 BALL SEAT PTFE 2
5 O-RING FKM 1
6 THRUST WASHER PTFE 1
7 O-RING FKM 1
8 STEM SEAT PTFE 1
9 PACKING GLAND CARBON STEEL 1
10 END STOP INOX AISI 430 (DN15-DN50) CARBON STEEL (DN65-DN150) 2-1
11 SPRING WASHER CARBON STEEL 2
12 NUT CARBON STEEL 2
13 STEM A479-TP316 1
14 HANDLE CARBON STEEL 1
15 HANDLE DN 150--200 CARBON STEEL 1
16 SCREW CARBON STEEL 2
17 SCREW CARBON STEEL 8-12
18 BODY HANDLE DN150-200 EN-GJL 250 1
19 Unscrewing grower A182-F316 1
SIZE DN CODE D Y Z L R P A C T E F ØN B Kv PN Kg
1/2" 15 72000204 90 65 4 35 131 65 47 15,5 9 10 7 32 4 19,2 16 1,40
3/4" 20 72000205 100 75 4 40 131 69 51,5 15,5 9 10 7 32 4 35 16 1,90
1" 25 72000206 115 85 4 46 174 80 61 17 11 12 8 42 4 64,5 16 2,20
1"1/4 32 72000207 140 100 4 54 174 84 64,5 15 11 12 8 42 4 103,8 16 3,30
1"1/2 40 72000208 150 110 4 63,5 250 102 78 24,5 13 16 10 50 4 174 16 4,20
2" 50 72000210 165 125 4 82 250 111 87 25 13 16 10 50 4 301,3 16 6,10
2"1/2 65 72000212 185 145 4 103 321 128 104,5 25 18 20 14 70 4 545,7 16 10,00
3" 80 72000214 200 160 8 122 321 138 115 28,5 18 20 14 70 4 872,5 16 13,50
4" 100 72000218 220 180 8 152 381 156 137 34,5 22 24 18 102 4 1363,3 16 20,90
5" 125 72000219 250 210 8 196 381 178 159 34 22 24 18 102 4 2360,3 16 40,50
6" 150 72000220 285 240 8 232 700 266 201,5 51,5 30 42 30 125 4 3671,1 16 66,20
8" 200 72000221 340 295 12 400 700 332 288 68 41 42 30 125 4 6816,6 16 104,00
Certifications
ADR BS 14432
F.E. TESTED ISO15848-1
TUV
SIL 3
ATEX FIRE-SAFE (On request)
Available media and videos
CAT242000 VALPRES
CAT242000 VALPRES
Spare Parts
HANDLES
Code Material Size
RI2180 AISI 316 15
RI2180 AISI 316 20
RI2181 AISI 316 25
RI2181 AISI 316 32
RI2182 AISI 316 40
RI2182 AISI 316 50
RI2183 AISI 316 65
RI2183 AISI 316 80
RI2184 AISI 316 100
RI2184 AISI 316 125
RI2185 AISI 316 150
RI2185 AISI 316 200
SEATS
Code Material Size
RI2441 PTFE 150
RI2442 PTFE 200
RI2455 PTFE VETRO - GLASS FILLED PTFE 150
RI2456 PTFE VETRO - GLASS FILLED PTFE 200
RI2061 PTFE CARBOGRAFITE - CARBON FILLED PTFE 15
RI2062 PTFE CARBOGRAFITE - CARBON FILLED PTFE 20
RI2063 PTFE CARBOGRAFITE - CARBON FILLED PTFE 25
RI2064 PTFE CARBOGRAFITE - CARBON FILLED PTFE 32
RI2131 PTFE CARBOGRAFITE - CARBON FILLED PTFE 40
RI2127 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
RI2123 PTFE CARBOGRAFITE - CARBON FILLED PTFE 65
RI2141 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80
RI2146 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
RI2070 PTFE CARBOGRAFITE - CARBON FILLED PTFE 125
RI2072 PTFE CARBOGRAFITE - CARBON FILLED PTFE 200
RI2452 PTFE CARBOGRAFITE CARBON FILLED PTFE 150
RI2453 PTFE CARBOGRAFITE CARBON FILLED PTFE 200
CAVITY FILLED SEATS
Code Material Size
RI2095 PTFE 10
RI2095 PTFE 15
RI2096 PTFE 20
RI2097 PTFE 25
RI2098 PTFE 32
RI2132 PTFE 40
RI2128 PTFE 50
RI2124 PTFE 65
RI2142 PTFE 80
RI2147 PTFE 100
RI2509 PTFE 65
RI2510 PTFE 100
