WAFER BALL VALVES
/
WAFER PN16 FOR STEAM
/
720302
WAFER PN16 FOR STEAM

720302

CARBON STEEL

Full bore flanged ball valve PN16 with Antistatic Device and Fire Safe certificate, metric thread blued A105 carbon steel. Suitable for steam.

FOR STEAM

Technical specifications

MAXIMUM WORKING PRESSURE 15 bar WITH STEAM.

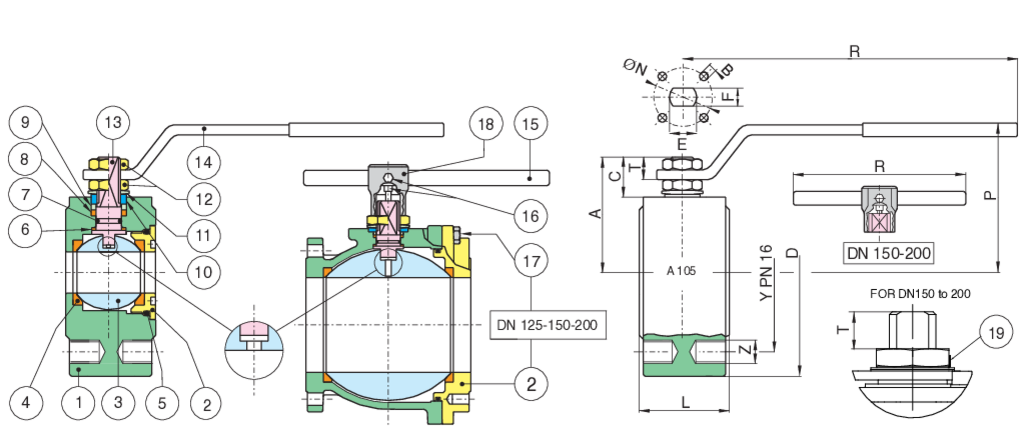

Position Part name Material N.° pieces
1 BODY ASTM-A105/LF2 1
2 END CONNECTION ASTM-A105/LF2 1
3 BALL A351-CF8/A479-TP304 1
4 BALL SEAT PTFE+CARBOGRAFITE 2
5 O-RING FKM 1
6 THRUST WASHER PTFE+CARBOGRAFITE 1
7 O-RING FKM 1
8 STEM SEAT PTFE+CARBOGRAFITE 1
9 PACKING GLAND CARBON STEEL 1
10 END STOP INOX AISI 430 (DN15-DN50) CARBON STEEL (DN65-DN100) 2-1
11 SPRING WASHER CARBON STEEL 2
12 NUT CARBON STEEL 2
13 STEM A479-TP304/17-4-PH 1
14 HANDLE CARBON STEEL 1
15 HANDLE DN 150 CARBON STEEL 1
16 SCREW CARBON STEEL 2
17 SCREW CARBON STEEL 8-12
18 BODY HANDLE DN150-200 EN-GJL 250 1
19 UNSCREWING GROWER A182-F316 1
SIZE DN CODE D Y Z L R P A C T E F ØN B Kv PN Kg
1/2" 15 72030204 90 65 4xM12 35 131 65 47 15,5 9 10 7 32 4xM5 19,2 16 1,90
3/4" 20 72030205 100 75 4xM12 40 131 69 51,5 15,5 9 10 7 32 4xM5 35 16 1,90
1" 25 72030206 115 85 4xM12 46 174 80 61 17 11 12 8 42 4xM5 64,5 16 2,70
1"1/4 32 72030207 140 100 4xM16 54 174 84 64,5 15 11 12 8 42 4xM5 103,8 16 4,20
1"1/2 40 72030208 150 110 4xM16 63,5 250 102 78 24,5 13 16 10 50 4xM6 174 16 5,90
2" 50 72030210 165 125 4xM16 82 250 111 87 25 13 16 10 50 4xM6 301,3 16 8,70
2"1/2 65 72030212 185 145 8xM16 103 321 128 104,5 25 18 20 14 70 4xM8 545,7 16 15,50
3" 80 72030214 200 160 8xM16 122 321 138 115 28,5 18 20 14 70 4xM8 872,5 16 20,50
4" 100 72030218 220 180 8xM16 152 381 156 137 34,5 22 24 18 102 4xM10 1363,3 16 34,20
5" 125 72030219 250 210 8xM16 196 381 178 159 34 22 24 18 102 4xM10 2360,3 16 40,50
6" 150 72030220 285 240 8xM20 232 700 266 201,5 51,5 30 42 30 125 4xM12 3671,1 16 66,20
Certifications
F.E. TESTED ISO15848-1
TUV
SIL 3
ATEX FIRE-SAFE
Available media and videos
Catalogue
Price List
Spare Parts
HANDLES
Code Material Size
RI2018 A 37 15
RI2018 A 37 20
RI2019 A 37 25
RI2019 A 37 32
RI2020 A 37 40
RI2020 A 37 50
RI2016 A 37 65
RI2016 A 37 80
RI2017 A 37 100
RI2017 A 37 125
RI2021 A 37 150
RI2021 A 37 200
SEATS
Code Material Size
RI2675 PTFE CARBOGRAFITE - CARBON FILLED PTFE 15
RI2676 PTFE CARBOGRAFITE - CARBON FILLED PTFE 20
RI2677 PTFE CARBOGRAFITE - CARBON FILLED PTFE 25
RI2678 PTFE CARBOGRAFITE - CARBON FILLED PTFE 32
RI2679 PTFE CARBOGRAFITE - CARBON FILLED PTFE 40
RI2680 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
RI2681 PTFE CARBOGRAFITE - CARBON FILLED PTFE 65
RI2682 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80
RI2683 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
RI6175 PTFE CARBOGRAFITE - CARBON FILLED PTFE 125
RI6348 PTFE CARBOGRAFITE - CARBON FILLED PTFE 150
BALL
Code Material Size
00304000046 AISI 304 15
00305000075 AISI 304 20
00306000038 AISI 304 25
00307000059 AISI 304 32
00308000029 AISI 304 40
00310000028 AISI 304 50
00312000013 AISI 304 65
00314000016 AISI 304 80
00318007004 AISI 304 100
STEMS
Code Material Size
00405000061 AISI 304 15
00405000061 AISI 304 20
00406000046 AISI 304 25
00406000046 AISI 304 32
00408000051 AISI 304 40
00408000051 AISI 304 50
00412000054 AISI 304 65
00412000054 AISI 304 80
00418000037 AISI 304 100
00418000037 AISI 304 125
00420000016 AISI 304 150
