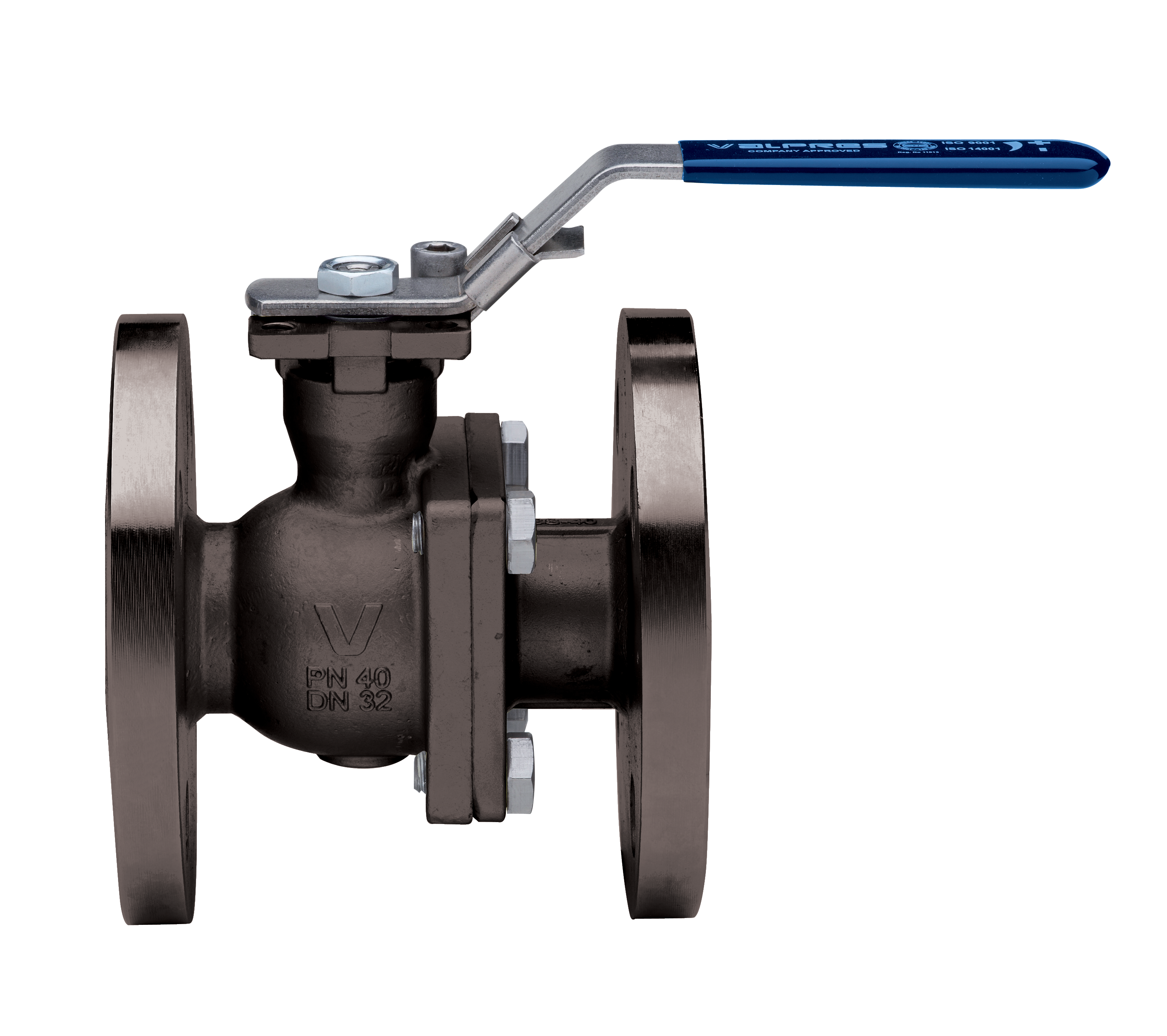

Carbon steel temperature range: -20°C +160°C.
Vacuum: 10-3 torr.
| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | A352-LCB | 1 |
| 2 | END CONNECTION | A352-LCB | 1 |
| 3 | BALL | A479-TP304/A351-CF8 | 1 |
| 4 | BALL SEAT | PTFE | 2 |
| 5 | SCREW | CARBON STEEL | 4-8 |
| 6 | BODY SEAT | GRAPHOIL | 1 |
| 7 | BODY SEAT | PTFE | 1 |
| 8 | STEM | 17-4-PH | 1 |
| 9 | SCREW | CARBON STEEL | 1 |
| 10 | NUT | CARBON STEEL | 1 |
| 11 | NUT | CARBON STEEL | 1 |
| 12 | SPRING WASHER | CARBON STEEL | 2 |
| 13 | BUSH | A182-F316 | 2 |
| 14 | STEM SEAT | GRAPHOIL | 1 |
| 15 | O-RING | FKM | 1 |
| 16 | STEM SEAT | PTFE | 1 |
| 17 | O-RING | FKM | 1 |
| 18 | THRUST WASHER | PTFE | 1 |
| 19 | HANDLE | STAINLESS STEEL | 1 |
| SIZE | DN | CODE | D | Y | Z | H | I | L | P | R | A | C | □E | ØN | B | ØN1 | B1 | Kv | PN | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 76200004 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 3/4" | 20 | 76200005 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 1" | 25 | 76600106 | 110 | 79,5 | 4xØ16 | 14,7 | 54 | 127 | 93 | 160 | 69 | 11 | 9 | 50-F05 | 7 | - | - | 64,5 | 20 | 3,80 |
| 1"1/2 | 40 | 76600108 | 130 | 98,5 | 4xØ16 | 17,9 | 76 | 165 | 118 | 240 | 94 | 14 | 11 | 70-F07 | 8,5 | 50-F05 | M6 | 174 | 20 | 7,00 |
| 2" | 50 | 76600110 | 150 | 102,5 | 4xØ19 | 19,5 | 84,5 | 178 | 127 | 240 | 103 | 13,5 | 11 | 70-F07 | 8,5 | 50-F05 | M6 | 301,3 | 20 | 9,60 |
| 2"1/2 | 65 | 76600112 | 180 | 139,7 | 4xØ19 | 23 | 75 | 190 | 154 | 321 | 128,5 | 17,5 | 14 | 70-F07 | 8,5 | - | - | 545,7 | 20 | 15,7 |
| 3" | 80 | 76600114 | 190 | 152,5 | 4xØ19 | 24,3 | 93 | 203 | 162 | 320 | 137,5 | 17,5 | 14 | 102-F10 | 11 | 70-F07 | M10 | 872,5 | 20 | 17,90 |
| 4" | 100 | 76600118 | 230 | 190,5 | 8xØ19 | 24,3 | 99,5 | 229 | 177 | 380 | 153,5 | 19 | 17 | 102-F10 | 11 | 70-F07 | M10 | 1363,3 | 20 | 24,30 |
| Code | Material | Size |
|---|---|---|
| RI2955 | AISI 316 | 25 |
| RI2955 | AISI 316 | 32 |
| RI2956 | AISI 316 | 40 |
| RI2956 | AISI 316 | 50 |
| RI2957 | AISI 316 | 65 |
| RI2957 | AISI 316 | 80 |
| RI2958 | AISI 316 | 100 |
| Code | Material | Size |
|---|---|---|
| RI2892 | PTFE | 25 |
| RI2893 | PTFE | 32 |
| RI2894 | PTFE | 40 |
| RI2895 | PTFE | 50 |
| RI2328 | PTFE | 65 |
| RI2897 | PTFE | 80 |
| RI2330 | PTFE | 100 DIN |
| RI2346 | PTFE | 100 Ansi |
| Code | Material | Size |
|---|---|---|
| 00304000046 | AISI 304 | 15 |
| 00305000075 | AISI 304 | 20 |
| 00306000038 | AISI 304 | 25 |
| 00307000054 | AISI 304 | 32 |
| 00308000029 | AISI 304 | 40 |
| 00310000028 | AISI 304 | 50 |
| 00312000013 | AISI 304 | 65 |
| 00314000016 | AISI 304 | 80 |
| 00318007004 | AISI 304 | 100DIN |
| 00318007002 | AISI 304 | 100ANSI |
| 00319007006 | AISI 304 | 125 |
| 00320007001 | AISI 304 | 150 |
| 00321000028 | AISI 304 | 200 |
| Code | Material | Size |
|---|---|---|
| 00406000038 | AISI 316 | 25 |
| 00407000026 | AISI 316 | 32 |
| 00408000040 | AISI 316/17-4-PH | 40 |
| 00408000040 | AISI 316/17-4-PH | 50 |
| 00412000042 | AISI 316/17-4-PH | 65 |
| 00412000042 | AISI 316/17-4-PH | 80 |
| 00418000029 | AISI 316/17-4-PH | 100 |
| 00406000039 | AISI 304 | 25 |
| 00407000031 | AISI 304 | 32 |
| 00408000041 | AISI 304 | 40 |
| 00408000041 | AISI 304 | 50 |
| 00418000031 | AISI 304 | 100 |
| Code | Material | Size |
|---|---|---|
| 00412000042 | AISI 304/17-4-PH | 65 |
| 00412000042 | AISI 304/17-4-PH | 80 |
