INTER-GAS

706003

WITH SQUARE

Fully welded floating ball valve for natural gas service, according to UNI 9734 and EN 13774, elongated stem for installation underground level, in ASTM A105, BW ends with square for manual operator connection.

Technical specifications

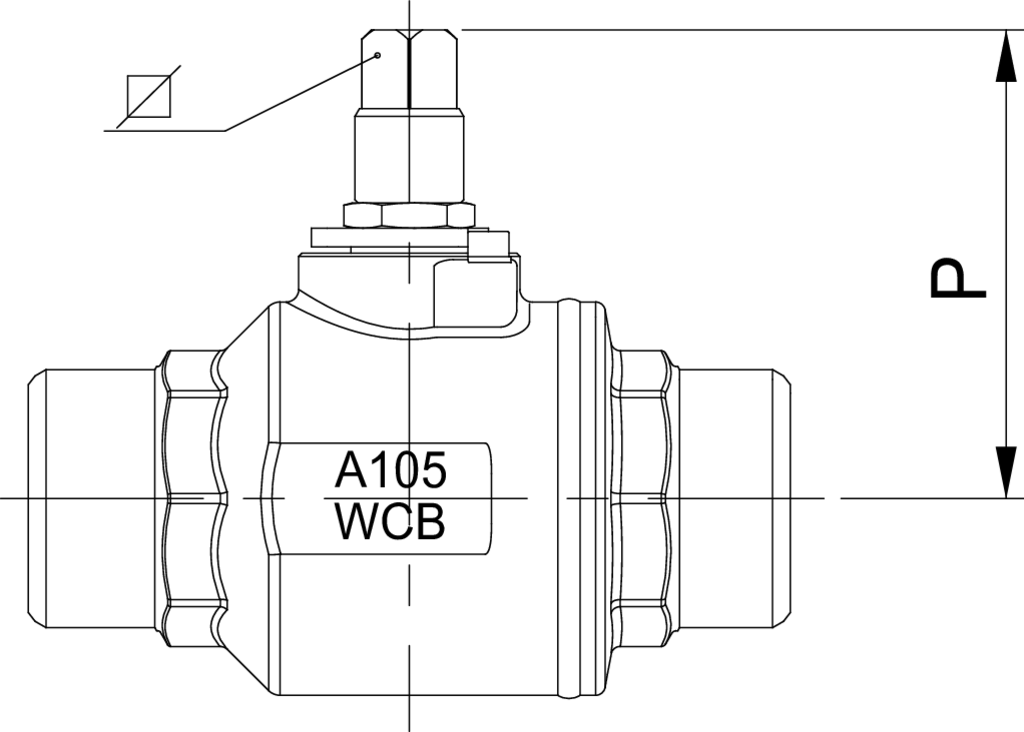

SIZE	DN	CODE	P	〼
1"	25	70600306	104	22 x 22
1"1/4	32	70600307	110	22 x 22
1"1/2	40	70600308	127	22 x 22
2"	50	70600310	138	22 x 22
2"1/2	65	70600312	156	22 x 22
3"	80	70600314	167	22 x 22
4"	100	70600318	184	22 x 22

Epoxy painting 100 micron thick.

Available media and videos

CAT242000 VALPRES

Spare Parts

BUTTERFLY HANDLES

Code	Material	Size
RI2028	AISI 430	1/8"
RI2028	AISI 430	1/4"
RI2028	AISI 430	3/8"
RI2028	AISI 430	1/2"

SEATS

Code	Material	Size
RI2054	PTFE VETRO - GLASS FILLED PTFE	1/8"
RI2054	PTFE VETRO - GLASS FILLED PTFE	1/4"
RI2054	PTFE VETRO - GLASS FILLED PTFE	3/8"
RI2055	PTFE VETRO - GLASS FILLED PTFE	1/2"
RI2056	PTFE VETRO - GLASS FILLED PTFE	3/4"
RI2057	PTFE VETRO - GLASS FILLED PTFE	1"
RI2058	PTFE VETRO - GLASS FILLED PTFE	1"1/4
RI2059	PTFE VETRO - GLASS FILLED PTFE	1"1/2
RI2060	PTFE VETRO - GLASS FILLED PTFE	2"
RI2175	PTFE VETRO - GLASS FILLED PTFE	2"1/2
RI2177	PTFE VETRO - GLASS FILLED PTFE	3"
RI2034	PTFE VETRO - GLASS FILLED PTFE	4"
RI2148	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1/8"
RI2148	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1/4"
RI2148	PTFE CARBOGRAFITE - CARBON FILLED PTFE	3/8"
RI2149	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1/2"
RI2150	PTFE CARBOGRAFITE - CARBON FILLED PTFE	3/4"
RI2151	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1"
RI2152	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1"1/4
RI2153	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1"1/2
RI2154	PTFE CARBOGRAFITE - CARBON FILLED PTFE	2"
RI2155	PTFE CARBOGRAFITE - CARBON FILLED PTFE	2"1/2
RI2156	PTFE CARBOGRAFITE - CARBON FILLED PTFE	3"
RI2157	PTFE CARBOGRAFITE - CARBON FILLED PTFE	4"

STEMS ANTISTATIC DEVICE

Code	Material	Size
00401000003	AISI 316	1/4"
00401000003	AISI 316	1/8"
00401000003	AISI 316	1/2"
00401000003	AISI 316	3/8"
00405000029	AISI 316	3/4"
00406000011	AISI 316	1"
00406000011	AISI 316	1"1/4
00408000010	AISI 316	1"1/2
00408000010	AISI 316	2"
00412000021	AISI 316	2"1/ 2
00412000021	AISI 316	3"
00418000006	AISI 316	4"
