WAFER-SPLIT BALL VALVES
/
WAFER-SPLIT PN16
/
764001
WAFER-SPLIT PN16

764001

CARBON STEEL

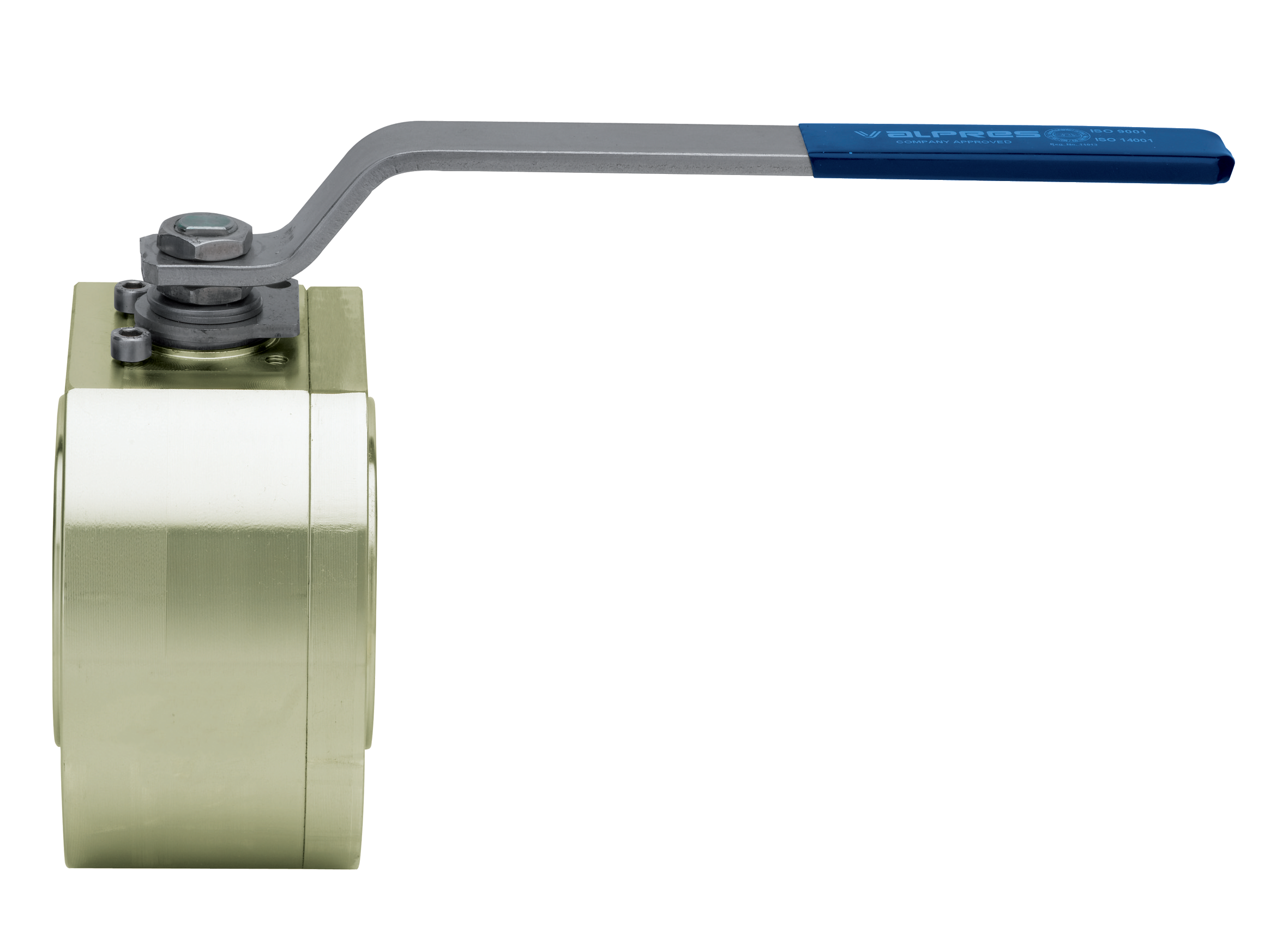

Full bore Wafer-Split flanged ball valve PN16 with Antistatic Device and Fire Safe certificate, metric thread zinc-plated A105 carbon steel.

DN65/80/100 PN40 carbon steel.

Technical specifications

Carbon steel temperature range: -20° +160°

Vacuum: 10-3 torr.

Position Part name Material N.° pieces
1 BODY ASTM A105 1
2 END CONNECTION ASTM A105 1
3 BALL A351-CF8/A479-TP304 1
4 BALL SEAT PTFE 2
5 BODY SEAT PTFE 1
6 THRUST WASHER PTFE 1
7 O-RING FKM 1
8 O-RING FKM 1
9 STEM SEAT PTFE 1
10 PACKING GLAND A182-F316 2
11 SCREW CARBON STEEL 2
12 SPRING WASHER CARBON STEEL 2
13 NUT CARBON STEEL 2
14 STEM A479-TP304/17-4-PH 1
15 HANDLE CARBON STEEL 1
16 SCREW CARBON STEEL 3-4
17 BODY SEAT GRAPHOIL 1
18 90° STOP CARBON STEEL 1
19 STEM SEAL GRAPHOIL 1
20 WASHER STAINLESS STEEL 2
SIZE DN CODE D Y Z I L R P A C T E F ØN B Kv PN Kg
1/2" 15 76400104 90 65 4xM12 22 53 131 69 52,5 19,5 8 M10 7 42-F04 M5 19,2 40 2,30
3/4" 20 76400105 95 75 4xM12 22 53 131 74 56 18 7,5 M10 7 42-F04 M5 35 40 2,45
1" 25 76400106 110 85 4xM12 24 57 174 92 72,5 25,5 10 M12 8 42-F04 M5 64,5 40 3,80
1"1/4 32 76400107 130 100 4xM16 30 65 174 97 76 23 8,5 M12 8 42-F04 M5 103,8 40 5,60
1"1/2 40 764001108 140 110 4xM16 37,5 79 250 118 93 31 11 M16 10 50-F05 M6 174 40 8,50
2" 50 76400110 150 125 4xM16 42 84 250 126 102 31 11,5 M16 14 50-F05 M6 301,3 40 10,00
2"1/2 65 76400112 180 145 4xM16 50,5 103 321 143 121 37,5 17 M20 14 70-F07 M8 545,7 16 17,50
3" 80 76400114 190 160 8xM16 61 122 381 153 132 42 18 M24 18 70-F07 M8 872,5 16 27,50
4" 100 76400118 220 180 8xM16 77,5 155 381 166 145,5 43 18 M24 18 102-F10 M10 1363,3 16 36,80
Certifications
SIL 3
TUV
FIRE-SAFE Acc. EN ISO 10497/API 607
F.E. TESTED ISO15848-1
