WAFER BALL VALVES
/
WAFER PN16
/
720601
WAFER PN16

720601

Full bore flanged ball valve PN16, metric thread stainless steel A351-CF8 and A351-CF8M.

A351-CF3M ANSI 150 metric.

Technical specifications

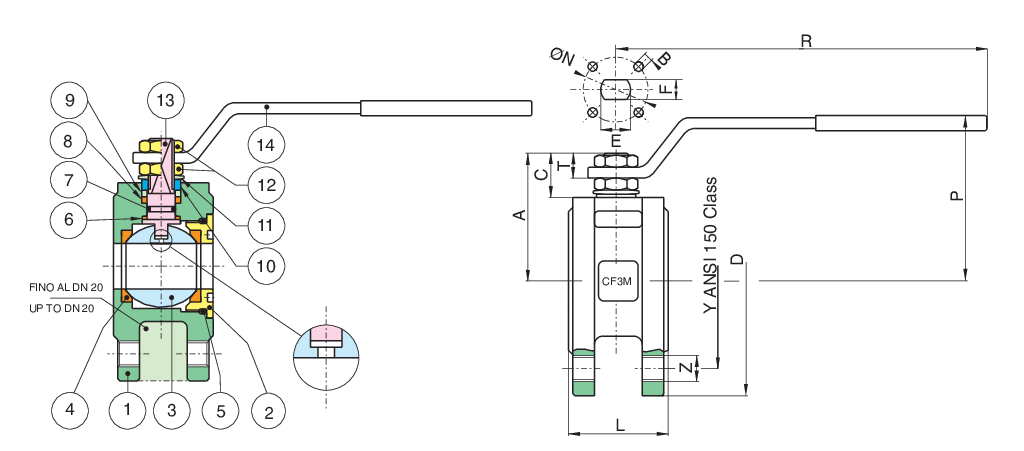

Position Part name Material N.° pieces
1 BODY A351-CF3M-A479-Tp316L 1
2 END CONNECTION A479-TP316L 1
3 BALL A351-CF3M-A479-Tp316L 1
4 BALL SEAT PTFE 2
5 O-RING FKM (VITON) 1
6 ANTIFRICTION RING TFM 1
7 O-RING FKM (VITON) 1
8 STEM SEAT PTFE 1
9 PACKING GLAND A37+Z/P 1
10 90° STOP AISI 430 (DN15-DN50) A37+Z-P (DN65-DN200) 2-1
11 SPRING WASHER 51CrV4+Z/P 2
12 NUT A2-70 2
13 STEM A479-TP316L 1
14 HANDLE A37+Z/P 1
SIZE DN CODE D Y Z L R P A C T E F ØN B Kv PN Kg
1/2" 15 72060104 90 60,5 4xM14 35 131 65 47 15,5 9 10 7 32 4xM5 19,2 20 1,30
1" 25 72060106 110 79,2 4xM14 46 174 80 61 17 11 12 8 42 4xM5 64,5 20 2,2
1"1/4 32 72060107 118 88,9 4xM14 54 174 84 64,5 15 11 12 8 42 4xM5 103,8 20 3,7
1"1/2 40 72060108 130 98,6 4xM14 63,5 250 102 78 24,5 13 16 10 50 4xM6 174 20 3,70
2"1/2 65 72060112 178 139,7 4xM16 103 321 128 104,5 25 18 20 14 70 4xM8 545,7 20 10,00
3" 80 72060114 190 152,4 4xM16 122 321 138 115 28,5 18 20 14 70 4xM8 872,5 20 12,80
