WAFER BALL VALVES
/
WAFER PN16
/
720565
WAFER PN16

720565

Full bore flanged ball valve PN16, metric thread stainless steel A351-CF8 and A351-CF8M.

A182-F316/A351-CF8M PN6.

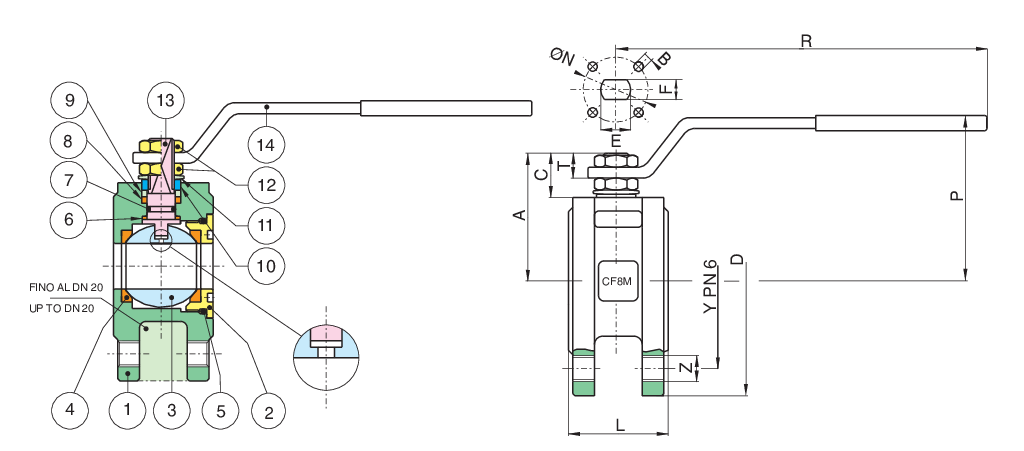

Technical specifications
Position Part name Material N.° pieces
1 BODY A351-CF8M/A479-TP316 1
2 END CONNECTION A479-TP316 1
3 BALL A351-CF8M/A479-TP316 1
4 BALL SEAT PTFE 2
5 O-RING FKM (VITON) 1
6 ANTIFRICTION RING TFM 1
7 O-RING FKM (VITON) 1
8 STEM SEAT PTFE 1
9 PACKING GLAND A479-TP316 1
10 90° STOP AISI 316-AISI 304 1
11 SPRING WASHER AISI 304 2
12 NUT A2-70 2
13 STEM A479-TP316 1
14 HANDLE AISI 316 1
SIZE DN CODE D Y Z L R P A C T E F ØN B Kv PN Kg
1/2" 15 72056504 80 55 4xM10 35 131 65 47 15,5 9 10 7 32 4xM5 19,2 6 1,3
3/4" 20 72056505 90 65 4xM10 40 131 69 51,5 15,5 9 10 7 32 4xM5 35 6 1,7
1" 25 72056506 95 75 4xM10 46 174 80 61 19,5 11 12 8 42 4xM5 64,5 6 2,00
1"1/4 32 72056507 115 90 4xM12 54 174 84 65,5 19,5 11 12 8 42 4xM5 103,8 6 3,3
1"1/2 40 72056508 130 100 4xM12 63,5 250 102 78 24,5 13 16 10 50 4xM6 174 6 4,00
2" 50 72056510 140 110 4xM12 82 250 111 87 25 13 16 10 50 4xM6 301,3 6 6,00
2"1/2 65 72056512 185 130 4xM12 103 321 128 104,5 25 18 20 14 70 4xM8 545,7 6 10,00
Certifications
ADR BS 14432
F.E. TESTED ISO15848-1
TUV
SIL 3
ATEX FIRE-SAFE (On request)
