SPLIT-BODY BALL VALVES
/
SPLIT-BODY ANSI 600
/
760200
SPLIT-BODY ANSI 600

760200

STAINLESS STEEL

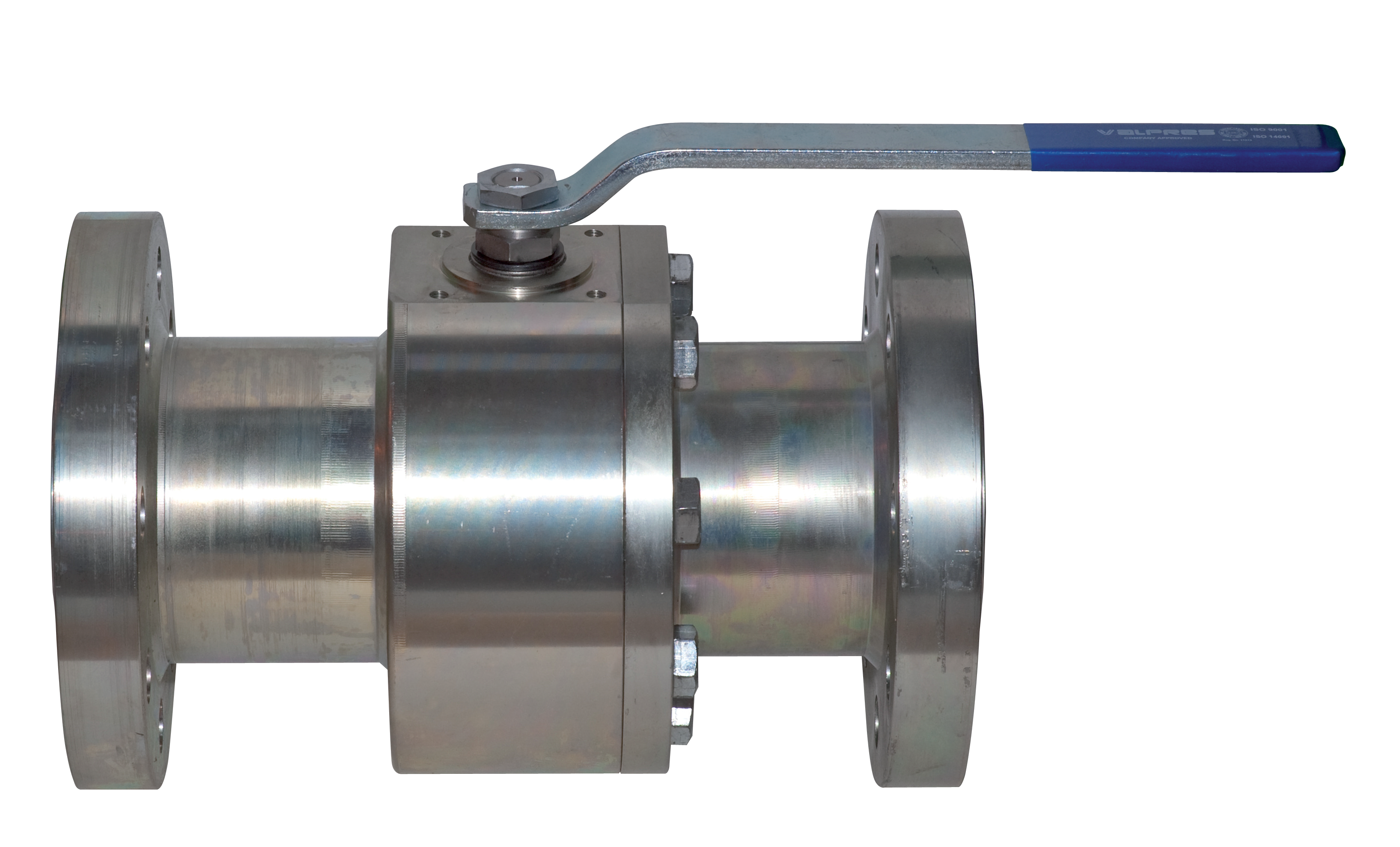

Flanged ANSI 600 stainless steel AISI A479-Tp316 ball valve, full bore, ANSI B16.10 face to face dimension, Fire Safe Antistatic Device.

Technical specifications

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

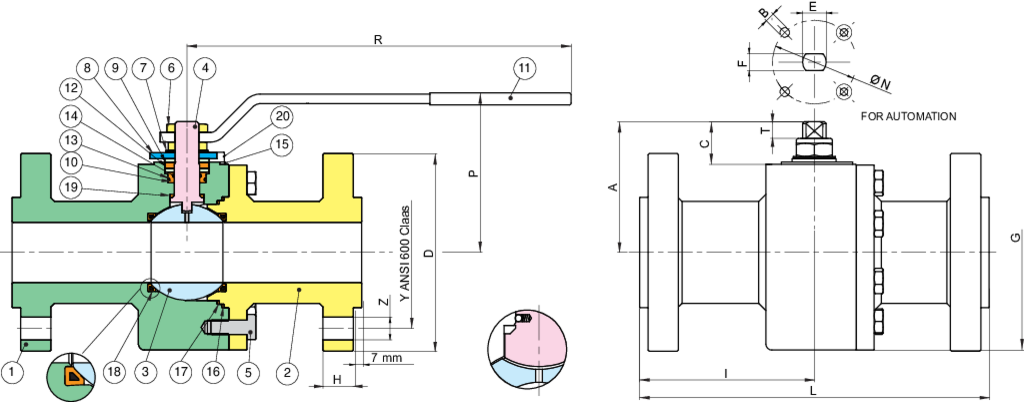

Position Part name Material N.° pieces
1 BODY A182-F316/F316L 1
2 END CONNECTION A182-F316/F316L 1
3 BALL A479-TP316/A351-CF8M 1
4 STEM A479-TP316/17-4-PH 1
5 SCREW STAINLESS STEEL 4-8
6 NUT STAINLESS STEEL 2
7 SPRING WASHER STAINLESS STEEL 2
8 90° STOP STAINLESS STEEL 1
9 PACKING GLAND A182-F316 2
10 STEM SEAT PTFE 1
11 HANDLE STAINLESS STEEL 1
12 STEM SEAL GRAPHOIL 1
13 O-RING FKM 1
14 O-RING FKM 1
15 WASHER A182-F304 2
16 BODY SEAT GRAPHOIL 1
17 BODY SEAT PTFE 1
18 BALL SEAT PTFE+MET/R PTFE 2
19 THRUST WASHER PTFE 1
20 SCREW STAINLESS STEEL 2
SIZE DN CODE D Y Z H I L G R P A C T E F ØN B Kv PN Kg
1/2" 15 76020004 95 66,7 4xØ16 14,3 82,5 165 85 131 88 52,5 19,5 8 M10 7 42-F04 M5 19,2 100 4,10
3/4" 20 76020005 115 82,6 4xØ19 15,9 95,5 191 95 131 92 56 19,5 8,5 M10 7 42-F04 M5 35 100 6,00
1" 25 76020006 125 89 4xØ19 17,5 108 216 108 174 110 72,5 27,5 13 M12 8 50-F05 M6 64,5 100 8,90
1"1/2 40 76020008 155 114,5 4xØ22 22,3 120,5 241 159 251 131 107 32 13 M16 10 50-F05 M6 174 100 20,00
2" 50 76020010 165 127 8xØ19 25,4 146 292 163 321 133 109 35,5 14 M20 14 70-F07 M8 301,3 100 25,50
3" 80 76020014 210 168,5 8xØ22 31,8 178 356 208 381 156 132 40 16 M24 18 102-F10 M10 872,5 100 52,00
4" 100 76020018 275 216 8xØ26 38,1 216 432 261 381 186 165 43 18 M24 18 102-F10 M10 1363,3 100 97,00
Certifications
TUV SIL 3
FIRE-SAFE Acc. EN ISO 10497/API 607
Available media and videos
Catalogue
Price List
V-PACK
Spare Parts
HANDLES
Code Material Size
RI2180 AISI 316 15
RI2180 AISI 316 20
RI2181 AISI 316 25
RI2181 AISI 316 32
RI2182 AISI 316 40
RI2183 AISI 316 50
RI2183 AISI 316 65
RI2184 AISI 316 80
RI2184 AISI 316 100
RI2184 AISI 316 125
RI2021 A 37 150
RI2021 A 37 200
SEATS
Code Material Size
RI2373 PTFE CON ANIMA METALLICA - METAL CORE PTFE 15
RI2374 PTFE CON ANIMA METALLICA - METAL CORE PTFE 20
RI2375 PTFE CON ANIMA METALLICA - METAL CORE PTFE 25
RI2376 PTFE CON ANIMA METALLICA - METAL CORE PTFE 32
RI2377 PTFE CON ANIMA METALLICA - METAL CORE PTFE 40
RI2378 PTFE CON ANIMA METALLICA - METAL CORE PTFE 50
RI2379 PTFE CON ANIMA METALLICA - METAL CORE PTFE 65
RI2380 PTFE CON ANIMA METALLICA - METAL CORE PTFE 80
RI2381 PTFE CON ANIMA METALLICA - METAL CORE PTFE 100
BALL
Code Material Size
00304000037 AISI 316 15
00305000031 AISI 316 20
00306000031 AISI 316 25
00307000031 AISI 316 32
00308000026 AISI 316 40
00310000080 AISI 316 50
00312000009 AISI 316 65
00314000013 AISI 316 80
00318007006 AISI 316 100
STEMS ANTISTATIC DEVICE
Code Material Size
00404000033 AISI 316 15
00404000033 AISI 316 20
00406000020 AISI 316 25
00410000024 AISI 316 50
00414000003 AISI 316 80
STEMS
Code Material Size
00408000022 AISI 316 40
00414000006 AISI 304 100
