SPLIT-BODY BALL VALVES
/
SPLIT-BODY ANSI 600 API608
/
68F400
SPLIT-BODY ANSI 600 API608

68F400

CARBON STEEL

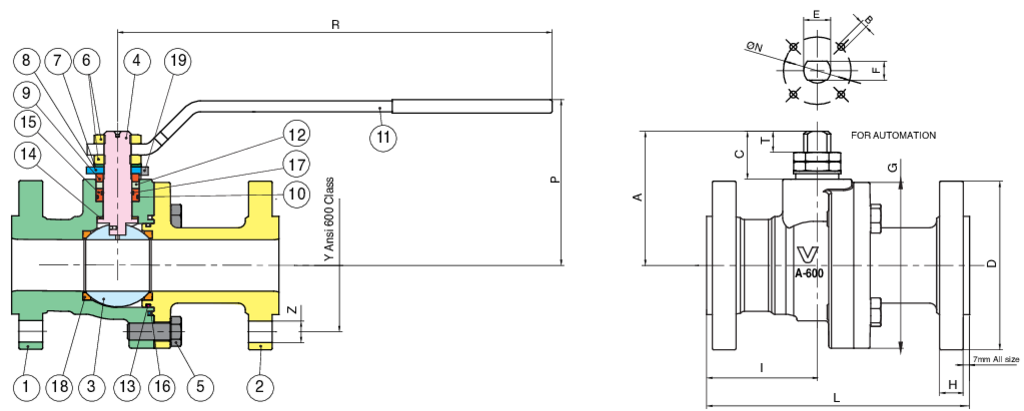

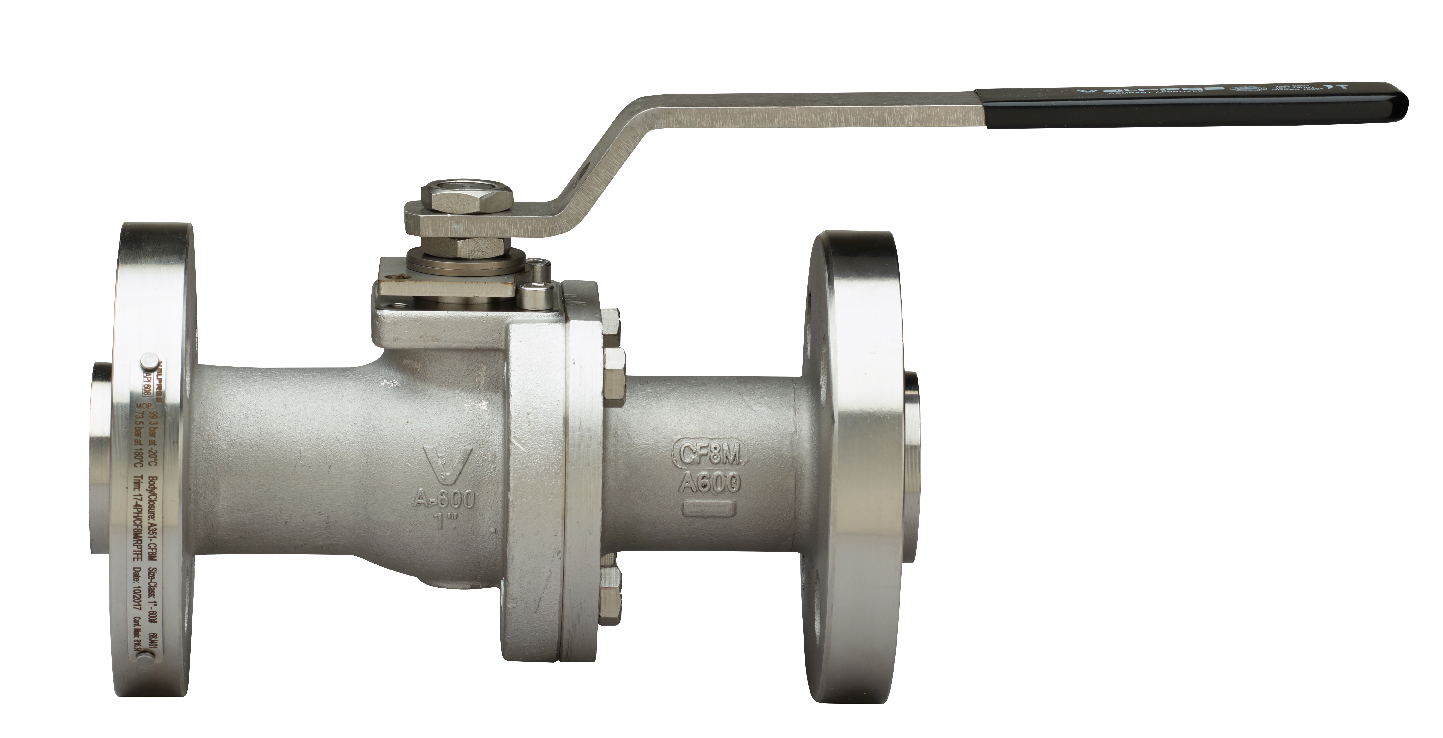

Flanged ANSI 600 API STANDARD 608 zinc-plated carbon steel A352-LCC ball valve, full bore, ASME B16.10 face to face dimension, Fire Safe, Antistatic Device.

Technical specifications

Temperature range: -20°C +180°C.

Vacuum: 10-3 torr.

Position Part name Material N.° pieces
1 BODY A352-LCC 1
2 END CONNECTION A352-LCC 1
3 BALL A479-TP316 1
4 STEM 17-4-PH 1
5 SCREW A320 L7 4-6
6 NUT CARBON STEEL 2
7 SPRING WASHER CARBON STEEL 2
8 90° STOP AISI 316 1
9 BUSH A479-TP316L 1
10 O-RING FKM 1
11 HANDLE CARBON STEEL 1
12 STEM SEAL GRAFITE 1
13 O-RING FKM 1
14 THRUST WASHER RPTFE 1
15 O-RING BUSH A479-TP316L 1
16 BODY SEAT GRAFITE 1
17 O-RING FKM 1
18 BALL SEAT RPTFE 2
19 SCREW CARBON STEEL 2
SIZE DN CODE D Y Z H I L G P R A C T E F ØN B Kv PN Kg
1/2" 15 68F40004 95 66,7 4xØ16 14,3 69 165 85 95 174 54 21,5 6,8 M12 8 42-F04 M5 19,2 100 3,60
3/4" 20 68F40005 115 82,6 4xØ19 15,9 78,5 190 95 99 174 58 20,5 6,8 M12 8 42-F04 M5 35 100 5,10
1" 25 68F40006 125 88,9 4xØ19 17,5 97,5 216 105 100 250 75 29 10 M16 10 50-F05 M6 64,5 100 7,20
1"1/2 40 68F40008 155 114,3 4xØ22 22,3 130 241 128 123 321 99,7 35,5 15,5 M20 14 50-F05 M6 174 100 13,20
2" 50 68F40010 165 127 8xØ19 25,4 119,5 292 144 133 321 109 36,5 16,5 M20 14 50-F05 M6 301,3 100 17,40
Certifications
TUV SIL 3
FIRE-SAFE Acc. EN ISO 10497/API 607
F.E. TESTED ISO15848-1
Available media and videos
Catalogue
Price List
Spare Parts
SEATS
Code Material Size
RI6115 PTFE CARBOGRAFITE - CARBON FILLED PTFE 15
RI6116 PTFE CARBOGRAFITE - CARBON FILLED PTFE 20
RI6117 PTFE CARBOGRAFITE - CARBON FILLED PTFE 25
RI6118 PTFE CARBOGRAFITE - CARBON FILLED PTFE 40
RI6119 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
