CATALOGUE
/
ACCESSORIES
/
ACCESSORIES
/
ACCESSORIES

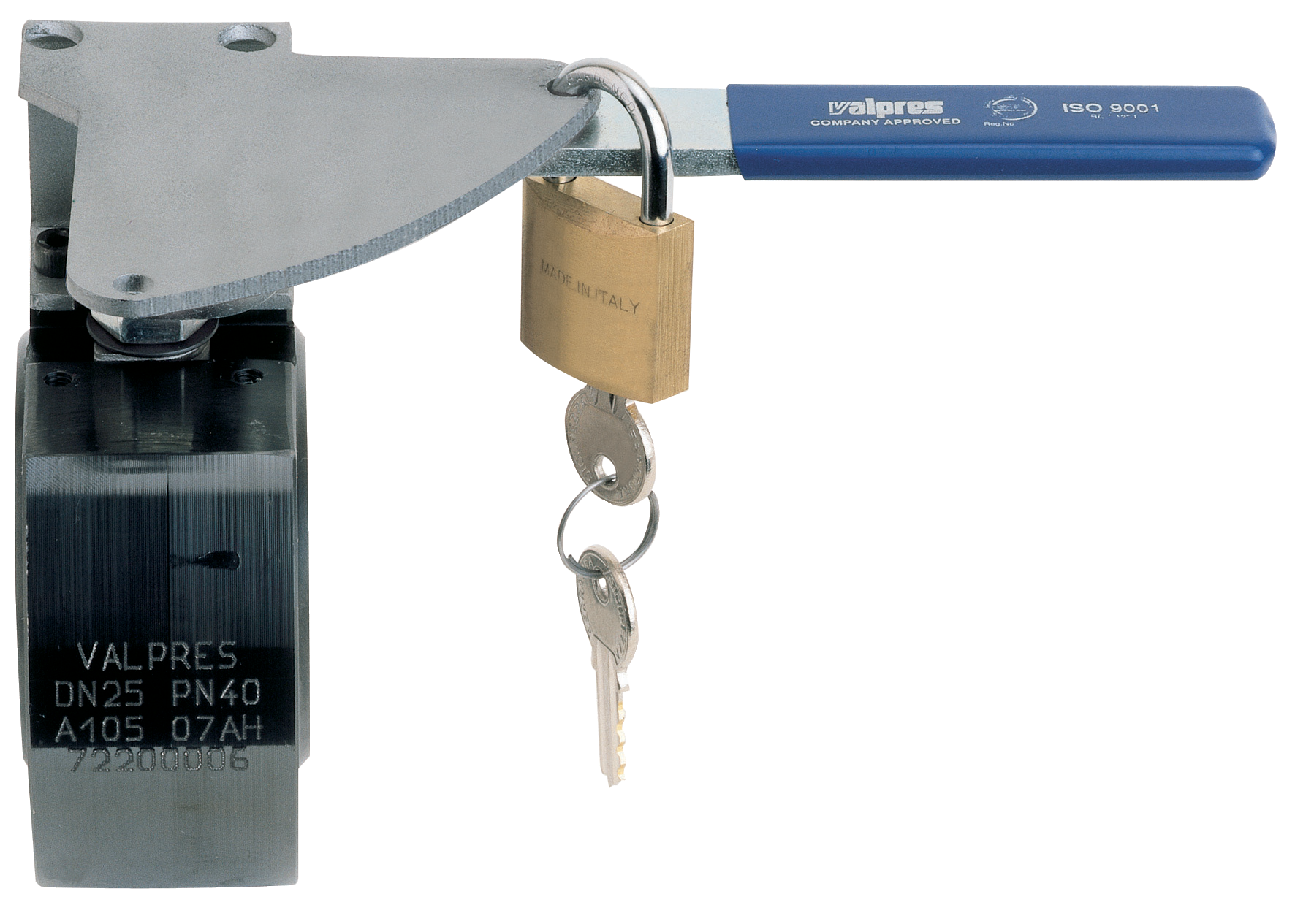

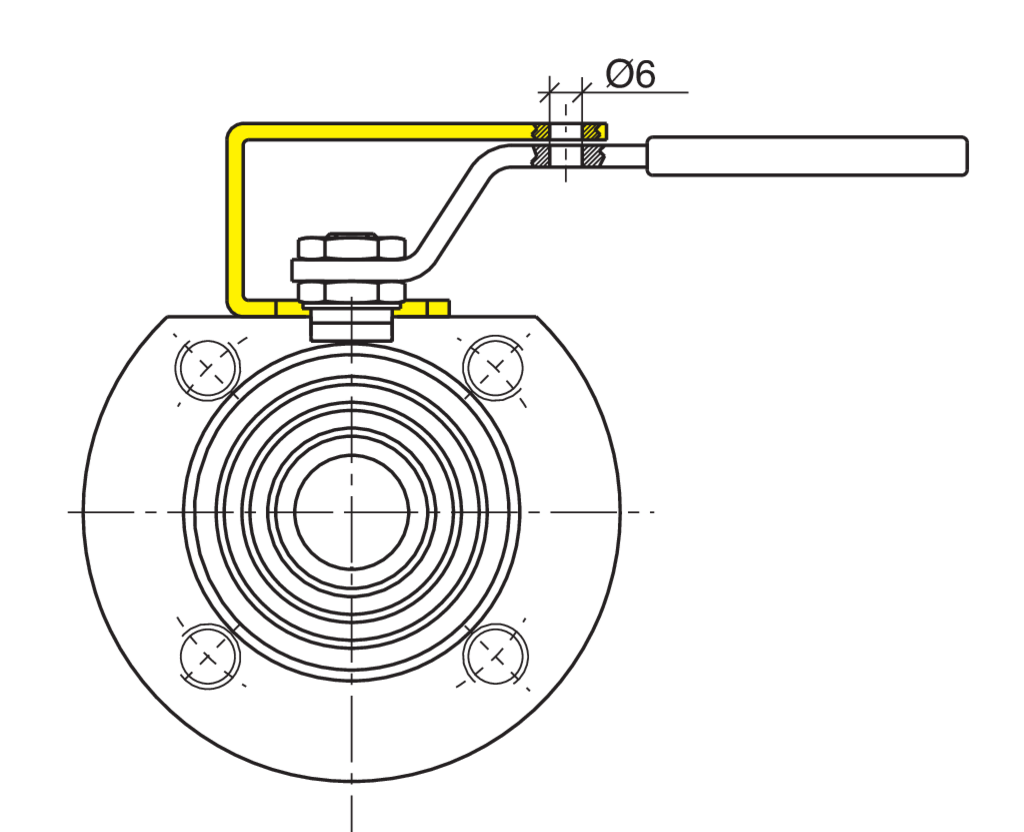

Locking handle device (lockpad excluded)
Technical specifications
DN CODE SERIE-SERIES ISO PAD MATERIALE-MATERIAL NON VALIDO-NOT AVAILABLE
1/2" 890056 72 Ø32 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
3/4" 890056 70-71-72 Ø42-F04 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
1" 890057 72-730008 Ø42-F04 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
1"1/4 890057 72-730008 Ø42-F04 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
1" 1/2 890058 72-730008 Ø50-F05 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
2" 890058 72-730008 Ø50-F05 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
2"1/2 890059 70-71-72-730008-776 Ø70-F07 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
3" 890059 70-71-72-73-776 Ø70-F07 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
4" 890060 70-71-72-73-776 Ø102-F10 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
5" 890060 72-73-776 Ø102-F10 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
6" 890061 72-73-776 Ø125-F12 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
8" 890061 72-73 Ø125-F12 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
1" 890073 70-71 Ø42-F04 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
1"1/4 890073 70-71 Ø42-F04 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
1" 1/2 890074 70-71 Ø50-F05 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
2" 890074 70-71 Ø50-F05 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
1/4"-3/8"-1/2" 890075 70 Ø36-F03 ACCIAO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
1/2" 890075 71 Ø36-F03 ACCIAIO INOX-STAINLESS STEEL 703000-704000-709000-720700-720650
