3 WAY BALL VALVES
/

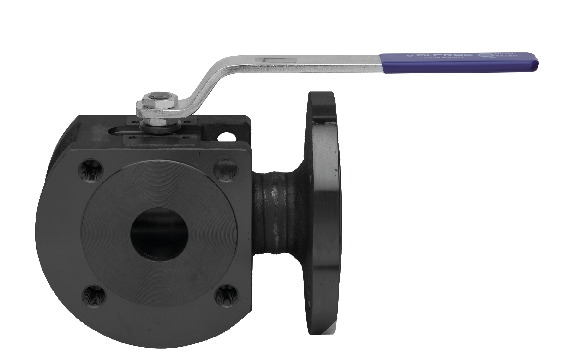

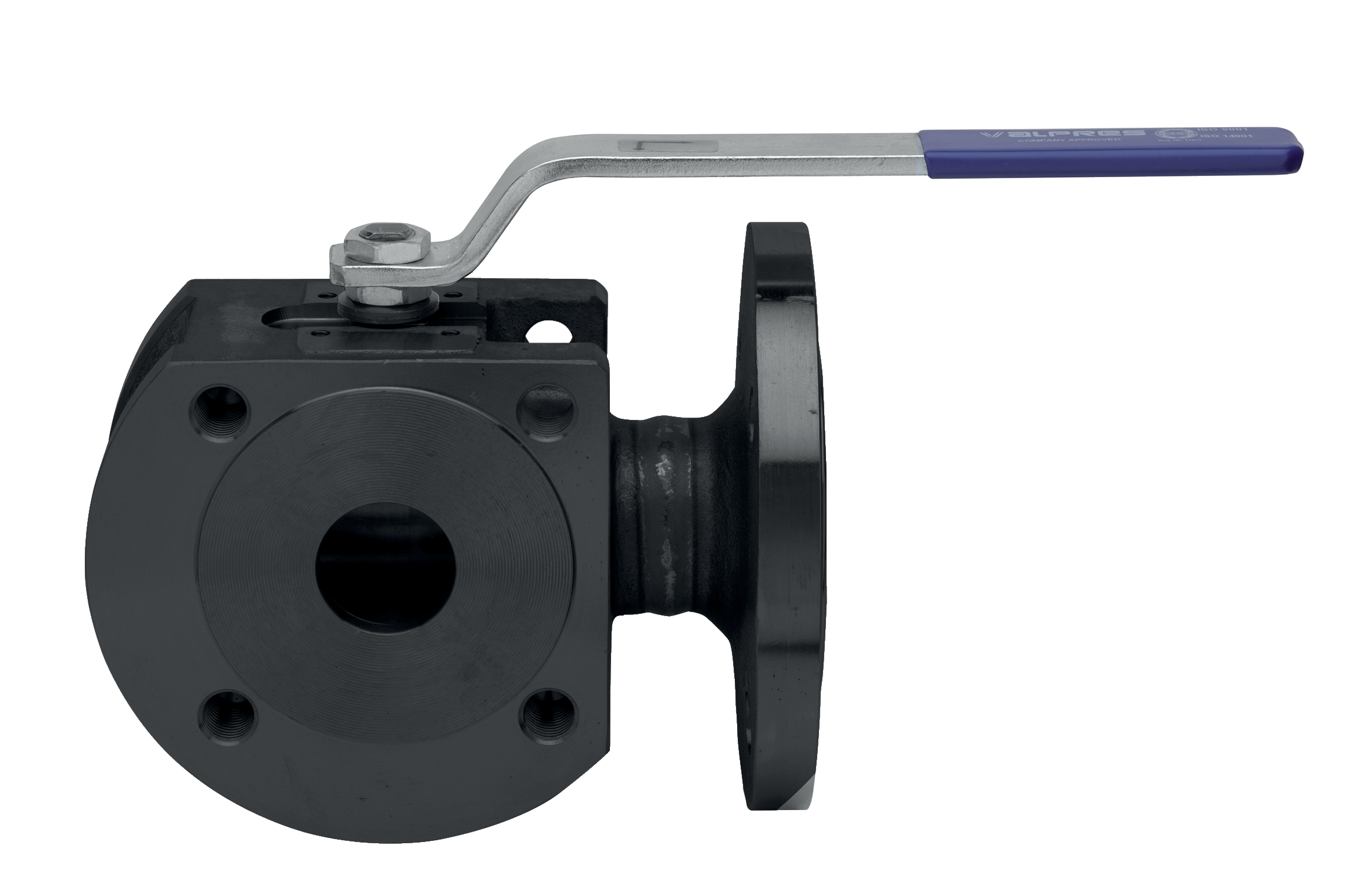

SERIES 77 3 WAY BALL VALVES
/
776000(L) - 776001(T)
SERIES 77 3 WAY BALL VALVES

776000(L) - 776001(T)

CARBON STEEL

Reduce bore three way flanged PN16 diverter ball valve, blued A105 carbon steel material, L and T multi port ball, with 2 seats.

Technical specifications

Carbon steel temperature range: -10°C +160°C.

Vacuum: 10-3 torr.

Position Part name Material N.° pieces
1 BODY ASTM A105 1
2 END CONNECTION ASTM A105 1
3 BALL A351-CF8/A479-TP304 1
4 BALL SEAT PTFE 2
5 O-RING FKM 1
6 THRUST WASHER PTFE 1
7 O-RING FKM 1
8 STEM SEAT PTFE 1
9 PACKING GLAND CARBON STEEL 1
10* END STOP INOX AISI 430 (DN15-DN50) CARBON STEEL (DN65-DN150) 2-1
11 SPRING WASHER CARBON STEEL 2
12 NUT CARBON STEEL 2
13 STEM A479-TP304 1
14 HANDLE CARBON STEEL 1
15 HANDLE DN 150 CARBON STEEL 1
16 SCREW CARBON STEEL 1
17 SCREW CARBON STEEL 8
18 BODY HANDLE DN150 EN-GJL 250 1
SIZE DN CODE X Y Z I L R P A C G M D S E F ØN B Kv(L) PN Kg
1/2" 15 77600004-77600104 89 65 4xM12 20 40 131,5 64,5 47 15,5 95 4xØ14 10 76 10 7 32 4xM5 2,8 16 2,23
3/4" 20 77600005-77600105 99 75 4xM12 20 40 131,5 67 49,5 13,5 105 4XØ14 15 82 10 7 32 4XM5 5,2 16 2,86
1" 25 77600006-77600106 109 85 4XM12 23 46 174,5 79 59 18 115 4xØ14 20 86 12 8 42 4xM5 9,2 16 3,89
1"1/4 32 77600007-77600107 130 100 4xM16 29 58 250,5 84 64 15,5 140 4xØ18 25 105 12 8 42 4xM5 14,4 16 6,21
1"1/2 40 77600008-77600108 140 110 4xM16 35,5 71 250,5 102,5 78 24,5 150 4xØ18 32 110 16 10 50 4xM6 25,9 16 8,50
2" 50 77600010-77600110 160 125 4xM16 41 82 321,5 109 85 25 165 4xØ18 40 120 16 10 50 4xM6 40,4 16 12,27
2"1/2 65 77600012-77600112 180 145 4xM16 53 106 321,5 128 104,5 28 185 4xØ18 50,2 125 20 14 70 4xM8 63,2 16 19,10
3" 80 77600014-77600114 200 160 8xM16 61 122 381,5 136,5 113 28 200 8xØ18 64 150 20 14 70 4xM8 115,8 16 24,34
4" 100 77600018-77600118 220 180 8xM16 76 152 381,5 155,5 136 34,5 220 8xØ18 76 159 24 18 102 4xM10 163,2 16 38,45
5" 125 77600019-77600119 250 210 8xM16 98 196 381,5 178,5 159 34,5 250 8xØ18 100 190 24 18 102 4xM10 282,6 16 63,00
6" 150 77600020-77600120 306 240 8xM20 116 242 700 252 201 49 285 8xØ22 125 210 42 30 125 4xM12 441,6 16 108,00

*For automation please consult factory.

Certifications
TUV
ATEX
Available media and videos
Catalogue
Price List
Spare Parts
HANDLES
Code Material Size
RI2018 A 37 15
RI2018 A 37 20
RI2019 A 37 25
RI2019 A 37 32
RI2020 A 37 40
RI2020 A 37 50
RI2016 A 37 65
RI2016 A 37 80
RI2017 A 37 100
RI2017 A 37 125
RI2021 A 37 150
RI2021 A 37 200
SEATS
Code Material Size
RI2211 PTFE 15
RI2212 PTFE 20
RI2213 PTFE 25
RI2214 PTFE 32
RI2215 PTFE 40
RI2216 PTFE 50
RI2217 PTFE 65
RI2218 PTFE 80
RI2219 PTFE 100
RI2211 PTFE 15
RI2212 PTFE 20
RI2213 PTFE 25
RI2214 PTFE 32
RI2215 PTFE 40
RI2216 PTFE 50
RI2217 PTFE 65
RI2218 PTFE 80
RI2219 PTFE 100
BALL
Code Material Size
00302000027 AISI 316 15
00304000082 AISI 316 20
00305000073 AISI 316 25
00306000086 AISI 316 32
00307000066 AISI 316 40
00308000063 AISI 316 50
00310000102 AISI 316 65
00312000029 AISI 316 80
00314000039 AISI 316 100
00318000008 AISI 316 125
00319000002 AISI 316 150
00302000017 AISI 316 15
00304000083 AISI 316 20
00305000078 AISI 316 25
00306000080 AISI 316 32
00307000058 AISI 316 40
00308000064 AISI 316 50
00310000023 AISI 316 65
00312000031 AISI 316 80
00314000010 AISI 316 100
00318000025 AISI 316 125
00319000004 AISI 316 150
STEMS
Code Material Size
00405000061 AISI 304 15
00405000061 AISI 304 20
00406000046 AISI 304 25
00406000046 AISI 304 32
00408000051 AISI 304 40
00408000051 AISI 304 50
00412000054 AISI 304 65
00412000054 AISI 304 80
00418000037 AISI 304 100
00418000037 AISI 304 125
00420000016 AISI 304 150
STEMS ANTISTATIC DEVICE
Code Material Size
00404000033 AISI 316 15
00406000020 AISI 316 20
00406000020 AISI 316 25
00408000023 AISI 316 32
00410000024 AISI 316 40
00410000024 AISI 316 50
00412000015 AISI 316 65
00414000003 AISI 316 80
00414000003 AISI 316 100
