INOX-VAL 2 PIECE BALL VALVES

700017

Full bore stainless steel AISI 316-CF8M,ball valve, F/F threading, ISO 5211.

NPT B.1.20.1 with butterfly.

Technical specifications

Temperature range: -20°C. +160°C.
Vacuum: 10^-2 torr.

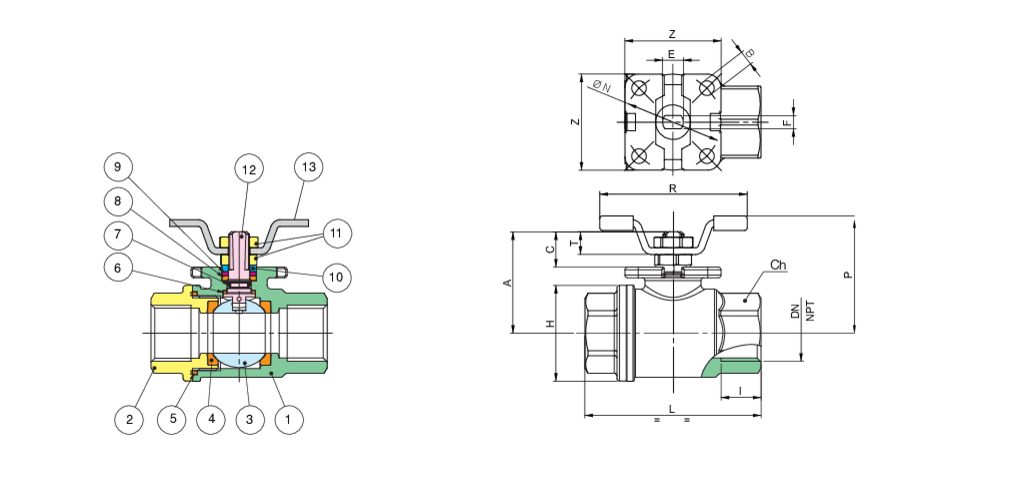

Position	Part name	Material	N.° pieces
1	BODY	A351-CF8M	1
2	END CONNECTION	A351-CF8M	1
3	BALL	A479-TP316/A351-CF8M	1
4	BALL SEAT	PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	TFM	1
7	O-RING	FKM (VITON)	1
8	STEM SEAT	PTFE	1
9	PACKING GLAND	AISI 303	1
10	END STOP	AISI 430	1
11	NUT	A2-70	2
12	STEM	A479-TP316	1
13	HANDLE	AISI 430	1

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	E	F	ØN ISO 5211	B	Z	Kv	PN	Kg	T
1/8"	6	70001701	10	7,4	55	30	ES.22	55	41	35	13,5	8	5	36	5,5	36	5	140	0,28	9
1/4"	8	70001702	10	11	55	30	ES.22	55	41	35	13,5	8	5	36	5,5	36	5,5	140	0,26	9
3/8"	10	70001703	10	11,4	55	30	ES.22	55	41	35	13,5	8	5	36	5,5	36	8,5	140	0,25	9
1/2"	15	70001704	10	15	66	36	ES.27	55	44	38	13,5	8	5	36	5,5	36	19,2	140	0,34	9

Certifications

SIL 3

TUV

ATEX FIRE-SAFE (On request)
