2 PC BALL VALVES
/
EURO-INOX
/
700023
EURO-INOX
700023
Full bore stainless steel AISI 316-CF8M ball valve, F/F threading.
NPT B.1.20.1 F/F.

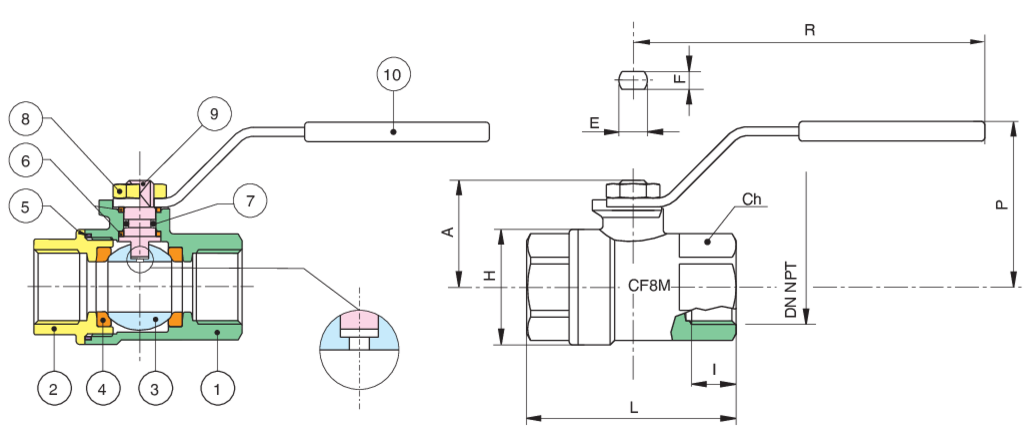

Technical specifications
Position
Part name
Material
N.° pieces
1
BODY
A351-CF8M
1
2
END CONNECTION
A351-CF8M
1
3
BALL
A479-TP316/A351-CF8M
1
4
BALL SEAT
PTFE
2
5
BODY SEAT
PTFE
1
6
THRUST WASHER
PTFE
2
7
O-RING
FKM
1
8
NUT
A182-F304
1
9
STEM
A479-TP316/17-4-PH
1
10
HANDLE
INOX AISI 430
1
SIZE
DN
I
L
H
Ch
R
P
A
E
F
BOX
Kv
PN
Kg
1/4"
8
10
53,5
30
ES.22
110
44
28
8
5
15
5,5
64
0,22
3/8"
10
10
53,5
30
ES.22
110
44
28
8
5
15
8,5
64
0,20
1/2"
15
13
60
35
ES.27
110
47
30,5
8
5
10
19,2
64
0,25
3/4"
20
14
70
42,5
ES.32
131
54
37
10
7
15
35
40
0,45
1"
25
17
79
52
OT.41
131
58
41
10
7
5
64,5
40
0,85
1"1/4
32
19
91
62
OT.50
174
70
50
12
8
2
103,8
25
1,20
1"1/2
40
19,5
103
75
OT.55
174
76
57
12
8
2
174
25
1,80
2"
50
22,5
124
95
OT.70
174
86
66
12
8
2
301,3
25
2,70
Available media and videos
Catalogue
Price List
Back to the catalogue
Related products / Accesories

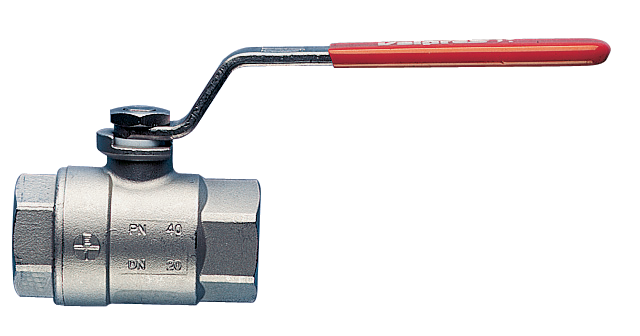

704000
