2 PC BALL VALVES
/
INOX-VAL 2 PIECE BALL VALVES
/
700004
INOX-VAL 2 PIECE BALL VALVES

700004

Full bore stainless steel AISI 316-CF8M,ball valve, F/F threading, ISO 5211.

Red Butterfly handle in stainless steel 1/8”-1/4”-3/8”-1/2”

Technical specifications

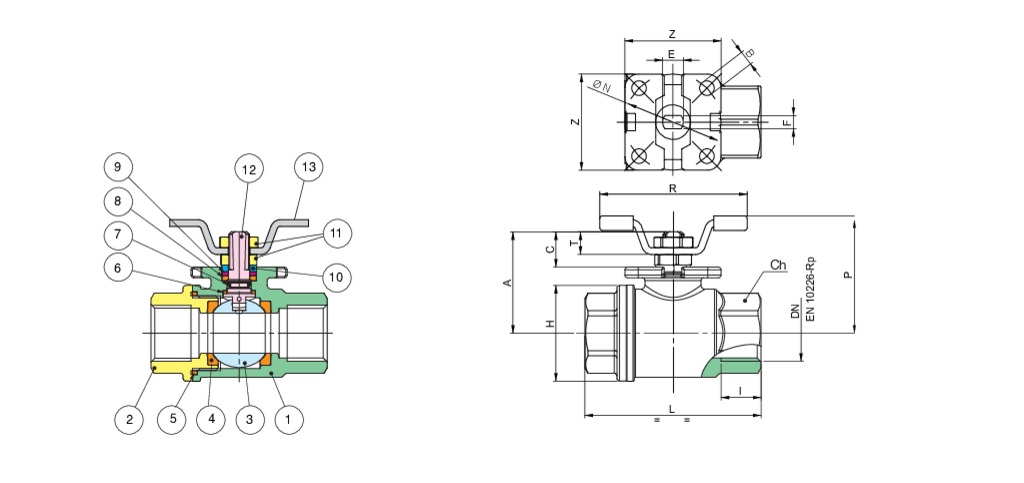

Position Part name Material N.° pieces
1 BODY A351-CF8M 1
2 END CONNECTION A351-CF8M 1
3 BALL A479-TP316/A351-CF8M 1
4 BALL SEAT PTFE 2
5 SEAT PTFE 1
6 THRUST WASHER PTFE 1
7 O-RING FKM 1
8 STEM SEAT PTFE 1
9 PACKING GLAND INOX AISI 303 (1/8”-2”) CARBON STEEL (2’’1/2-4’’) 1
10 END STOP INOX AISI 430 (1/8”-2”) CARBON STEEL (2"1/2-4") 2-1
11 SPRING WASHER CARBON STEEL (2’’1/2-3’’-4’’) 2
12 NUT A182-F304 (1/8”-2”)-CARBON STEEL (2’’1/2-4’’) 2
13 STEM A479-TP316/17-4-PH 1
14 HANDLE INOX AISI 430 (1/8”-2”) CARBON STEEL (2"1/2-4") 1
SIZE DN CODE BOX I L H Ch R P A C E F ØN B Z Kv PN Kg
1/8" 6 70000201 10 7,7 55 30 ES.22 110 50 35 13,5 8 5 36 5,5 36 5 140 0,29
1/4" 8 70000202 10 11 55 30 ES.22 110 50 35 13,5 8 5 36 5,5 36 5,5 140 0,27
3/8" 10 70000203 10 11,4 55 30 ES.22 110 50 35 13,5 8 5 36 5,5 36 8,5 140 0,26
1/2" 15 70000204 10 15 66 36 ES.27 110 53 38 13,5 8 5 36 5,5 36 19,2 140 0,35
Certifications
SIL 3
TUV
ATEX FIRE-SAFE (On request)
Available media and videos
CAT242000 VALPRES
CAT242000 VALPRES
Spare Parts
BUTTERFLY HANDLES
Code Material Size
RI2028 AISI 430 1/8"
RI2028 AISI 430 1/4"
RI2028 AISI 430 3/8"
RI2028 AISI 430 1/2"
SEATS
Code Material Size
RI2054 PTFE VETRO - GLASS FILLED PTFE 1/8"
RI2054 PTFE VETRO - GLASS FILLED PTFE 1/4"
RI2054 PTFE VETRO - GLASS FILLED PTFE 3/8"
RI2055 PTFE VETRO - GLASS FILLED PTFE 1/2"
RI2056 PTFE VETRO - GLASS FILLED PTFE 3/4"
RI2057 PTFE VETRO - GLASS FILLED PTFE 1"
RI2058 PTFE VETRO - GLASS FILLED PTFE 1"1/4
RI2059 PTFE VETRO - GLASS FILLED PTFE 1"1/2
RI2060 PTFE VETRO - GLASS FILLED PTFE 2"
RI2175 PTFE VETRO - GLASS FILLED PTFE 2"1/2
RI2177 PTFE VETRO - GLASS FILLED PTFE 3"
RI2034 PTFE VETRO - GLASS FILLED PTFE 4"
RI2148 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1/8"
RI2148 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1/4"
RI2148 PTFE CARBOGRAFITE - CARBON FILLED PTFE 3/8"
RI2149 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1/2"
RI2150 PTFE CARBOGRAFITE - CARBON FILLED PTFE 3/4"
RI2151 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1"
RI2152 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1"1/4
RI2153 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1"1/2
RI2154 PTFE CARBOGRAFITE - CARBON FILLED PTFE 2"
RI2155 PTFE CARBOGRAFITE - CARBON FILLED PTFE 2"1/2
RI2156 PTFE CARBOGRAFITE - CARBON FILLED PTFE 3"
RI2157 PTFE CARBOGRAFITE - CARBON FILLED PTFE 4"
STEMS ANTISTATIC DEVICE
Code Material Size
00401000003 AISI 316 1/4"
00401000003 AISI 316 1/8"
00401000003 AISI 316 1/2"
00401000003 AISI 316 3/8"
00405000029 AISI 316 3/4"
00406000011 AISI 316 1"
00406000011 AISI 316 1"1/4
00408000010 AISI 316 1"1/2
00408000010 AISI 316 2"
00412000021 AISI 316 2"1/ 2
00412000021 AISI 316 3"
00418000006 AISI 316 4"
